Panasonic FV-0511VHL1

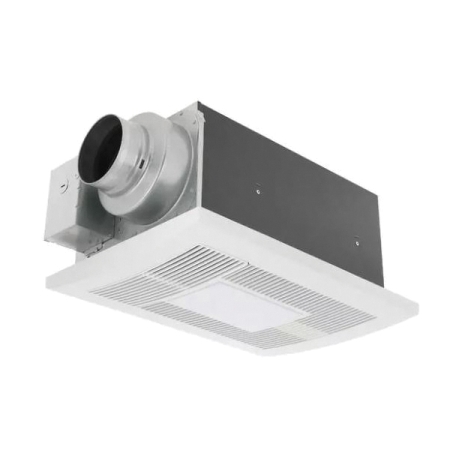

Panasonic WhisperWarm® DC™ FV-0511VHL1 120 V 0.5 A 60 Hz Ventilation Fan with LED Light

  • Mfg. Name: Panasonic
  • Brand Name: Panasonic
  • MPN: FV-0511VHL1
  • PSCN: 481427
  • UPC: 885170374188
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
  • Sold as pack of 1/Pack
Retail Price:
Qty
My List
Add / Remove CPN

WhisperWarm® DC™ ceiling-mount fan/heater/light provides easy code compliance for the professional, while the homeowner/occupant enjoys a warmer, more comfortable and healthier environment, with enhanced heating technology that quickly heats up any bathroom. Indoor comfortability is becoming more important in today's environment and WhisperWarm® DC™ is the solution.

  • Precision spot ventilation fan/heater incorporates a powerful ECM motor with SmartFlow™ technology for optimum CFM output
  • 1600 W positive temperature coefficient (PTC) heater provides instant warm up for safe and reliable operation
  • Combined with a unique circulation grille with built-in diffuser, it provides even more advanced heating performance
  • Pick-A-Flow™ (50-80-110 cfm) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
  • Light option includes a 10 W dimmable LED chip panel with <1 W LED night light, JA-8 compliant for CA Title 24 (night light must be wired separately)
  • Flex-Z Fast™ bracket provides flexible, fast and easy installation, even from below the ceiling
Brand : Panasonic
Sub Brand : WhisperWarm® DC™
Item Name : Ventilation Fan with LED Light
Installation Type : Ceiling
Voltage Rating : 120 V
Amperage Rating : 0.5 A
RPM : 885/1115/1265/745/1022/1194/654/943/1130 Rpm
Hertz : 60 Hz
Wattage Rating : 4.7/7.4/12.4 W
Sones : <0.3, 0.7
CFM : 110 cfm, 80 cfm, 50 cfm
Duct Shape : Round
Duct Size : 4 Inch, 6 Inch
Grille Shape : Rectangular
Grille Length : 18-1/4 Inch
Grille Width : 13-1/4 Inch
Material : Galvanized Steel
Length : 16 Inch
Width : 10-1/4 Inch
Energy Star : No
HVI Certified : Yes
Title 24 Compliant : Yes
Mounting Opening Size : 10-1/4 Inch x 16 Inch
Lamp Color Temperature : 3000 K
Color Rendering Index : >=90 CRI
Lamp Rated Average Life : 50000 hr
