White-Rodgers 50D50U-843

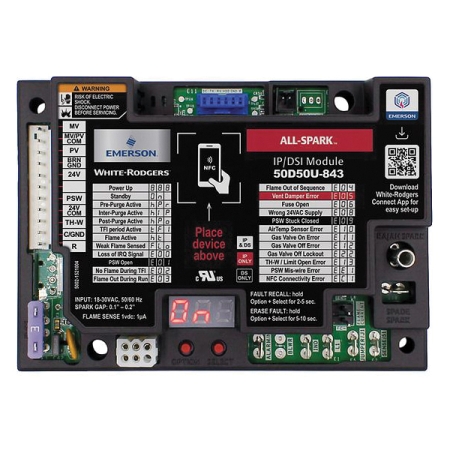

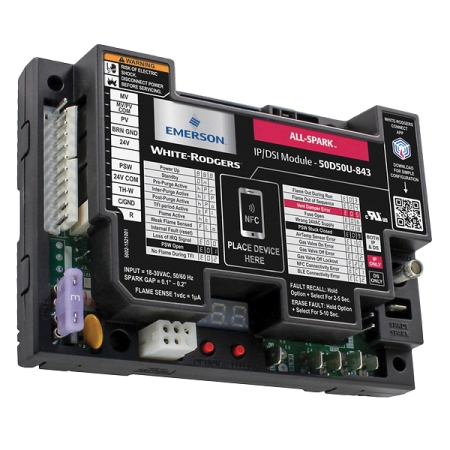

White-Rodgers All-Spark™ 50D50U-843 120/24 VAC 1000 mA Universal Non-Integrated Ignition Module

  • Mfg. Name: White-Rodgers
  • Brand Name: White-Rodgers
  • MPN: 50D50U-843
  • PSCN: 505190
  • UPC: 786710561658
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

All-Spark™ universal intermittent pilot/direct spark 24 V ignition module. Integrated NFC for configuration and diagnostics using the WHITE-RODGERS™ Connect app. Replaces over 1000 24 V IP + DSI part numbers.

  • Configurable for both 24 V intermittent pilot and direct spark ignition modules
  • Streamline inventory by replacing over 1000+ 24 V IP/DSI part numbers

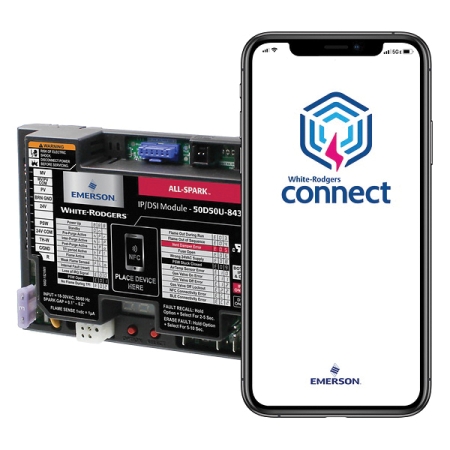

  • Quick configuration without power and simple diagnostics with the White-Rodgers Connect app
  • 7-segment display provides additional configuration options and expanded fault code message reporting
  • Rajah and spade spark terminals on-board eliminate the need for an external adapter
  • Applications include gas furnaces, water heaters, boilers, cooking and laundry equipment, unit heaters, infrared and tube heaters
  • Easy install harness converts old board wiring to fit All-Spark
  • Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters
Brand : White-Rodgers
Sub Brand : All-Spark™
Item Name : Universal Non-Integrated Ignition Module
Voltage Rating : 120/24 VAC
Amperage Rating : 1000 mA
Mounting : Surface
Temperature Rating : -40 - 175 deg F
Frequency Rating : 50/60 Hz
