Woodford 17W-14-MH

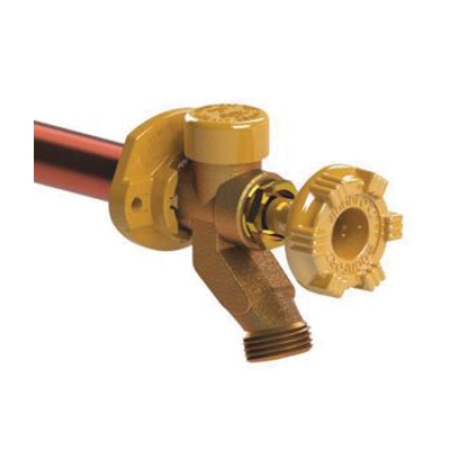

Woodford 17W-14-MH Rough Brass Freezeless Anti-Siphon Wall Faucet, 14 Inch Wall

  • Mfg. Name: Woodford
  • Brand Name: Woodford
  • MPN: 17W-14-MH
  • PSCN: 452754
  • UPC: 671090039999
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The freezeless model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut-off and the hose is removed. The model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker. This ASSE 1019 device is intended for irrigation use and outdoor watering and shall not be subjected to more than 12 hr of continuous water pressure.

  • 3/4 Inch male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No lead solder
  • Standard "O" size seat washer
  • Powder-coated, die-cast aluminum handle
  • Adjustable polycarbonate wall flange
Brand : Woodford
Inlet Size : 1/2 Inch
Item Name : Wall Faucet
Series/Model : Model 17
Type : Freezeless, Anti-Siphon
Connection Type : Wirsbo Tube
Material : Rough Brass
Wall Thickness : 14 Inch
Length : 15-1/2 Inch
Pressure Rating : 125 psi
Temperature Rating : 120 deg F
Operator Type : Handle
