Taco Z100P2-2

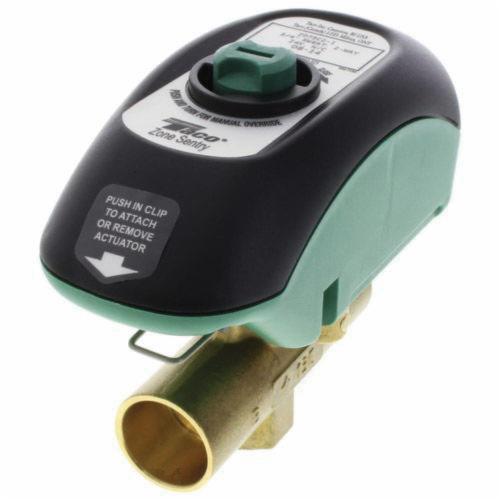

Taco Zone Sentry® Z100P2-2 Forged Brass 2-Way Zone Valve, 1 Inch Press, 24 VAC at 60 Hz

  • Mfg. Name: Taco
  • Brand Name: Taco
  • MPN: Z100P2-2
  • PSCN: 480001
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

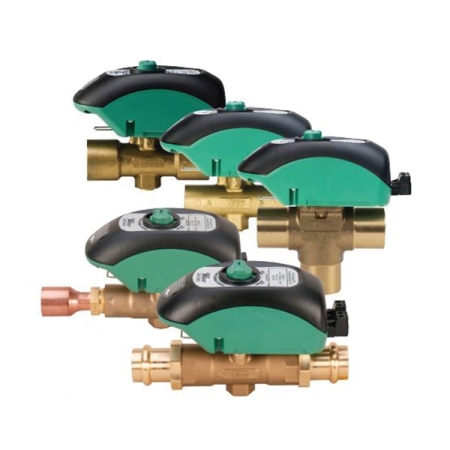

The Taco Zone Sentry® zone valve enhances the overall performance of any zone valve system. The unique patented technology in the Zone Sentry utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoff pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40 VA transformer.

Applications: For Indoor Use Only, Zoning

Sub Brand : Zone Sentry®
Item Name : Zone Valve
Size : 1 Inch
Connection Type : Press
Voltage Rating : 24 VAC at 60 Hz
Maximum Water Temperature : 220 deg F
Material : Forged Brass
Body Pattern : 2-Way
Flow Coefficient (Cv) : 7.5
Actuator Type : Gear Driven Electronic
Amperage Rating : 0.48 A Charging, 0.06 A Power-On
Power Consumption : 11.4 W Charging, 1.44 W Power-On
Position : Normally Closed (NC)
Wiring Type : Quick Connect
Width : 5.312 Inch
Height : 4-1/8 Inch
Depth : 2-3/8 Inch
Pressure Rating : 300 psi Operating, 125 psi Close-Off
Temperature Rating : 135 deg F Ambient
Frequency Rating : 60 Hz
