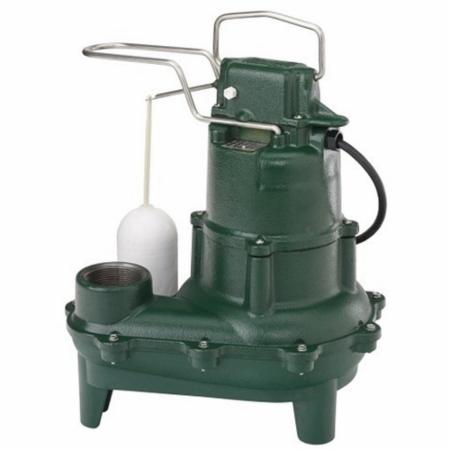

Zoeller M264

Zoeller Waste-Mate Series M264 Model Cast Iron Automatic Permanent Split Capacitor Sewage Pump, 4/10 hp, 115 VAC

  • Mfg. Name: Zoeller
  • Brand Name: Zoeller
  • MPN: M264
  • PSCN: 12089
  • UPC: 053514071684
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

This series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2 Inch spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure tested, submerged and run to ensure quality and reliability for years of trouble free performance. This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.

  • Float operated, submersible (NEMA 6), 2-pole switch
  • Durable, cast iron construction - switch cap, motor and pump housing
  • Engineered plastic base
  • Stainless steel screws, bolts, handle, guard, arm and seal assembly
  • Corrosion-resistant, powder coated epoxy finish
  • Hermetically-sealed, automatic reset thermal overload protection
  • Upper and lower sleeve bearings running in bath of oil
  • Carbon and ceramic shaft seal
  • Passes 2 Inch spherical solids
  • 2 Inch NPT discharge
  • 12-1/2 Inch on point, 4-1/2 Inch off point
  • Non-automatic for variable level systems

Standards/Certifications: CSA Certified, UL Listed

Brand : Zoeller
Item Name : Sewage Pump
Series/Model : Waste-Mate Series, Model M264
Type : Automatic, Permanent Split Capacitor
Horse Power : 4/10 hp
Maximum Flow : 90 gpm at 90 ft Head, 60 gpm at 10 ft Head, 23 gpm at 15 ft Head
Voltage Rating : 115 VAC
Material : Cast Iron
Switch Type : Mechanical
Impeller Material : Plastic
Outlet Diameter : 11-23/64 Inch
Outlet Connection : 2 Inch
Cord Length : 10 ft
Amperage Rating : 9.4 A
Finish : Power Coated Epoxy
Temperature Rating : 130 deg F Operating
Maximum Head : 18 ft
RPM : 1725 Rpm
Phase : 1
Frequency Rating : 60 Hz
Includes : Stainless Steel Handle
