US Motors 5460

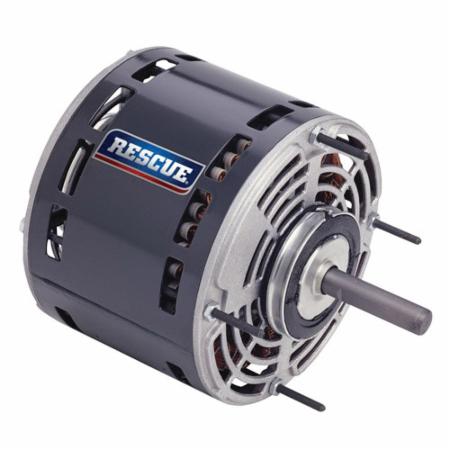

US Motors Rescue® Model K055ENV0115012B 5460 Permanent Split Capacitor Direct Drive Blower Motor, 115 V, 7.3 A

  • Mfg. Name: Industrial Parts & Electric Motors
  • Brand Name: US Motors
  • MPN: 5460
  • PSCN: 473556
  • UPC: 786382067380
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

5.6 Inch Dia OAO permanent split capacitor direct drive fan and blower motor for commercial and residential air handlers and furnaces, extended mounting studs, suitable for use with 370 V capacitors, 36 Inch leads, includes side shell holes for Rheem units, reversible rotation, 2.5 Inch diameter hub rings included.

  • Stud extensions on popular models
  • Class B insulation
  • 24 Inch leads
  • Continuous duty, air over
  • Bearings have all angle thrust system
  • Reversible rotation
  • Automatic reset thermal overload protector
  • Connection and capacitor information furnished in the nameplate data

Standards/Certifications: Prop65 Warning: Cancer and Reproductive Harm @www.P65Warnings.ca.gov, UR/CSA Certified

Applications: For Commercial And Residential Air Handlers And Furnaces, Extended Mounting Studs

Brand : US Motors
Sub Brand : Rescue®
Item Name : Blower Motor
Series/Model : Model K055ENV0115012B
Type : Permanent Split Capacitor, Direct Drive
Voltage Rating : 115 V
Amperage Rating : 7.3 A
HP Rating : 1/2 - 1/6 hp
Speed : 1075 Rpm
Rotation : Reversible
Mounting : All Angle
Efficiency : 65.9%
Temperature Rating : 140 deg F
Dimensions : 10.3 Inch Overall Length
Includes : 2.5 Inch Dia Hub Ring
Shaft Dimensions : 1/2 Inch Dia x 5 Inch L
Enclosure Type : OAO
Capacity : 7.5 to 12.5 micro-F
