Boshart PQC-E06

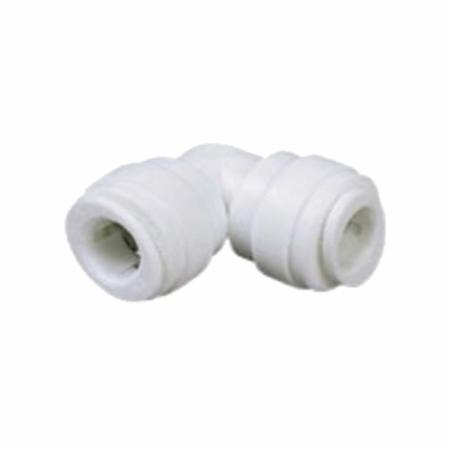

Boshart PQC-E06 Plastic Elbow, 3/8 Inch, Quick Connect

  • Mfg. Name: Boshart
  • Brand Name: Boshart
  • MPN: PQC-E06
  • PSCN: 463294
  • UPC: 777808421879
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Plastic quick connect fittings are manufactured from safe, non-toxic, Lead-free materials. Designed for use in water systems, food & beverage service and pneumatic systems. These fittings provide a quick and convenient assembly solution saving time and expense. A wide range of fitting configurations are available for 1/4 and 3/8 Inch OD PVC, polyethylene, PEX and copper tubing. Manufactured using US FDA approved materials and products are tested and certified in accordance with ANSI/NSF-51 & 61-G standards.

  • White acetal copolymer fittings, highly durable and resistant to fatigue and creep max working pressure at max working temp
  • Stainless steel gripper ring and NBR O-ring provide an instant leak proof connection 170 psi at 34 deg F, 100 psi at 150 deg F
  • Quick and easy installation, no crimp tools, adhesives or clamps required 1100 kPa at 1 deg C, 700 kPa at 65 deg C
  • Fittings are removable and re-useable, the unique oval collet design provides an easy grip to assemble and disassemble without damage to tubing or fittings
  • Light weight for easy handling at sites
  • Excellent resistance to most organic compounds, industrial chemicals and gases
  • Tubes supports are sold separately and are recommended for use with soft tubing and hot liquids

Standards/Certifications: ANSI/NSF-51 & 61-G

Applications: For POU Installations, Water Dispensing, Filtering Systems, Food/Beverage Service, Agricultural/Irrigation

Brand : Boshart
Item Name : Elbow
Type : Quick Connect
Nominal Size : 3/8 Inch
Connection Type : Quick Connect
Material : Plastic
Pressure Rating : 170 psi at 34 deg F, 100 psi at 150 deg F
