ZoomLock MZK-90E6-HNBR

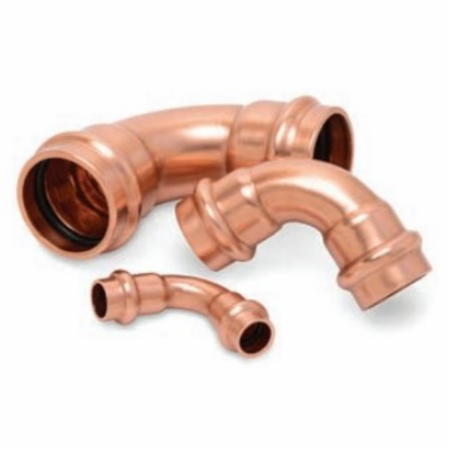

ZOOMLOCK MZK-90E6-HNBR 3/8" 90-DEGREE PRESS ELBOW (870602)

  • Mfg. Name: Parker
  • Brand Name: ZoomLock
  • MPN: MZK-90E6-HNBR
  • PSCN: 480734
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

      Parker ZoomLock MAX allows the contractor to successfully make leak-free connections with a press fitting systen, without the use of a brazing torch. ZoomLock MAX reduces installation costs, is more repeatable than brazing, improves system cleanliness, and creates secure leak-free tube connections.


      Markets:


      • Air Conditioning


      • Refrigeration


      • Transportation


      Features and Benefits:


      • Less equipment and no gas needed


      • Safer conditions, no fire hazards


      • No hot work permits required


      • More environmentally friendly


      • No solder related quality issues


      • More flexible access to job sites


      • No need to nitrogen purge


      Applications:


      • Heat Pumps


      • Air Conditioning – Residential, Commercial, Chillers, VRF, VRV


      • Refrigeration – Cases, Coolers, Walk in Coolers, Freezers


      • Pipe sizes range from 1/4” to 1 1/8”


      • Transportation



MINIMUM BURST PRESSURE

2100 psi

MAXIMUM OPERATING TEMPERATURE

250 F

MINIMUM OPERATING TEMPERATURE

-40 F

MAXIMUM OPERATING PRESSURE

700 psi

O-RING MATERIAL

HNBR

MODEL NUMBER

MZK-C4-HNBR 1/4" COUPLING

REFRIGERANT TYPE

32, 125, 134a, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20
