Panasonic FV-05-11VK2

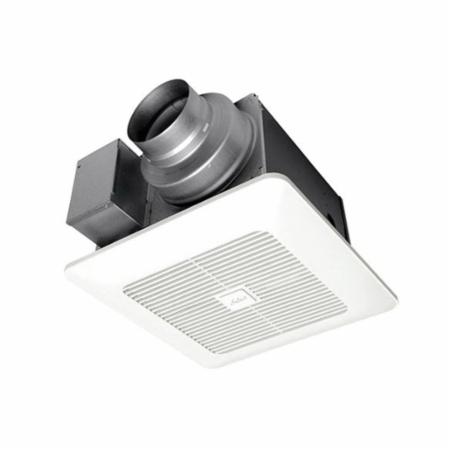

Panasonic WhisperGreen® Select™ FV-05-11VK2 Ceiling Mount Ventilation Fan, 50/80/100 cfm, 120 VAC

  • Mfg. Name: Panasonic
  • Brand Name: Panasonic
  • MPN: FV-05-11VK2
  • PSCN: 455898
  • UPC: 885170337282
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements that will provide greater value to our customers. First, our improved single-hinged Flex-Z Fast™ bracket for more flexible, fast and easy installation. Other enhancements include a new elegant grille design, an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

  • Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
  • Pick-A-Flow Airflow Selector; features a built-in speed selector (50-80-110 CFM model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
  • New Environmentally friendly 26 ga Zinc-Aluminum-Magnesium (ZAM) housing design
  • New Improved Flex-Z Fast™; single-hinge bracket with added flexibility, fast and easy installation
  • New elegant grille design complements the aesthetics of any room

Standards/Certifications: UL Listed, Energy Star Certified

Applications: For Use in The Bathroom, Laundry Room, Sun Room, Basement or Garage

Brand : Panasonic
Sub Brand : WhisperGreen® Select™
Item Name : Ventilation Fan
Installation Type : Ceiling
Voltage Rating : 120 VAC
Amperage Rating : 0.04 A at 50 cfm, 0.06 A at 80 cfm, 0.10 A at 110 cfm
RPM : 1356 Rpm at 0.2 A
Hertz : 60 Hz
Wattage Rating : 3.1 W at 50 cfm, 5.1 W at 80 cfm, 9.9 W at 110 cfm
Sones : 0.8
CFM : 50, 80, 110
Duct Shape : Round
Duct Size : 4 Inch Dia
Grille Shape : Square
Grille Length : 13 Inch
Grille Width : 13 Inch
Material : 26 ga Zinc Aluminum Magnesium Housing
Finish : White
Length : 7-3/8 Inch
Width : 10-1/4 Inch
Height : 10-1/4 Inch
Energy Star : Yes
HVI Certified : Yes
Title 24 Compliant : Yes
