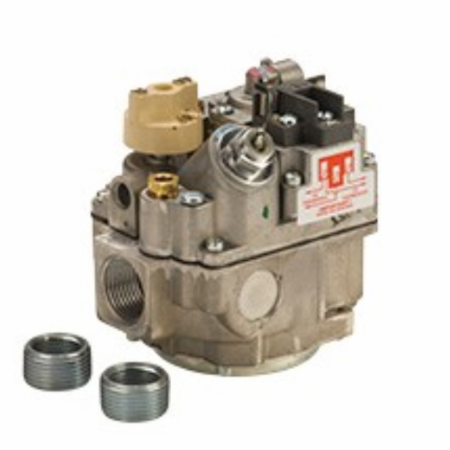

Robertshaw 700-515

The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming poolapplications. The complete line of 700-500 millivolt gasvalves offers a wide range of replacements from smallcapacity 3/8” pipe to high capacity 1” pipe up to 720,000BTU usage.

  • Mfg. Name: Robertshaw
  • Brand Name: Robertshaw
  • MPN: 700-515
  • PSCN: 421552
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

  • Gas cock dial marking Off - Pilot - On
  • Pilot outlet 1/4” tubing
  • Ambient temperature of -40°F to 175°F
  • Terminal type combination screw/spade
  • Maximum inlet pressure 14” WC (0.5 PSI)
  • Standard NEMA terminals
  • Inlet filtered screen
  • Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
  • RoHS compliant

Brand : Robertshaw
Series/Model : 700-515
Item Name : 700 Milivolt Gas Valve
Connection Type : Terminal type combination screw/spade
Voltage Rating : 250-750 mV
Dimensions : 4-1/16 Inch Width x 3-3/16 Inch Depth x 4-3/4 Inch Height
Temperature Rating : 32 - 175 deg F
Pressure Rating : 1/2 psi
