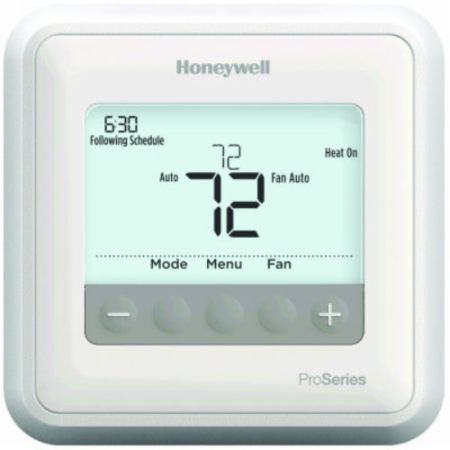

Honeywell TH4110U2005

HW TH4110U2005 T4 PRO PROGRAMMABLE THERMOSTAT

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: TH4110U2005
  • PSCN: 441969
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

T4 Pro Programmable Thermostat with stages up to 1 Heat/1 Cool Heat Pumps or 1 Heat/1 Cool Conventional Systems


  • 7-day, 5-2, 5-1-1 or non-programmable
  • Uses the UWP mounting system that’s standard across all T Series thermostats
  • Easy upsell to a connected Lyric T6 Pro Wi-Fi when your customer is ready for Wi-Fi (C-wire required)
  • Simple push-button functionality
  • Filter change reminders
  • 5-year warranty



Application

Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil, Geothermal Heat Pump, Air to Air Heat

Dimensions (in.)

4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep

Dimensions (mm)

103.6 mm long x 103.6 mm wide x 28 mm deep

Includes

Thermostat, UWP mounting system, Installation (J-box) adaptor,

Item Type

Product

Mounting

UWP Mounting System

Electrical Ratings

20 to 30 Vac

Frequency

50 Hz; 60 Hz

Stages

Up to 1 Heat/1 Cool Heat Pumps; Up to 1 Heat/1 Cool Conventional Systems

Electrical Connections

Honeywell UWP Mounting System

Operating Humidity Range (% RH)

5 to 90% RH, non-condensing

Supply Voltage

20 to 30 Vac

Switch Positions (System)

HEAT-OFF-COOL-AUTO.

Switch Positions (Fan)

AUTO-ON

Operating Temperature Range (F)

37 F to 102 F

Operating Temperature Range (C)

2.7 C to 39 C

Shipping and Storage Temperature Range (F)

- 20 F to 120 F

Shipping and Storage Temperature Range (C)

- 28.9 C to 48.9 C

LEDs

LED Back Light

Power Method

Battery or Hardwired

Accuracy (C)

0.5 C

Differential Temperature (F)

± 1 F

Differential Temperature (C)

± 0.5 C

Color

White

Ambient Temperature Range (F)

32 F to 120 F

Ambient Temperature Range (C)

0 C to 50 C

Switch Type

Relay

Programmability

7 day, 5-1-1 day, 5-2 day, or Non-programmable

Display

Medium display, Soft Key Controls

Display Size

3.93 sq.in.

Temperature Control Mode Selections

Ambient Air Temperature

Changeover

Auto or Manual

Setting Temperature Range (F)

Heat: 40 F to 90 F; Cool 50 F to 99F

Setting Temperature Range (C)

Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C

Cool Current

0.02 A to 1.0 A running

Heat Current

0.02-1.0 A

Fan Current

0.02-.05 A

Brand : Honeywell
Series/Model : T4 Pro
Type : Programmable
Number Of Heat Stages : 1
Number Of Cool Stages : 1
Display : 3.93 sq-Inch Digital Backlit
Differential Temperature Range : +/- 1 deg F
Setting Temperature Range : 40 - 90 deg F (Heat), 50 - 99 deg F (Cool)
Accuracy : +/- 1 deg F
Low Battery Indicator : Yes
Batteries Included : Yes
Power Source : Battery or Hardwired (Dual Powered)
Voltage Rating : 20 - 30 VAC
Switch Positions : Heat-Off-Cool (System), Auto-On (Fan)
Changeover : Auto or Manual
Color : Premier White®
Includes : (2) AAA Batteries
Operating Humidity : 5 - 90% RH
