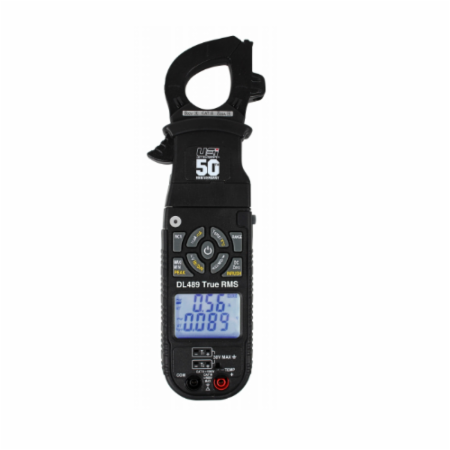

UEi DL489

UEi True RMS Digital Clamp Meter includes: Test leads w/alligator clips, K-type thermocouples, Zippered pouch, Batteries 6 (AAA), Manual

  • Mfg. Name: UEi Test Instruments
  • Brand Name: UEi
  • MPN: DL489
  • PSCN: 464981
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

HVAC/R Clamp Meter The DL489 is a True RMS meter with a dual display and dual K-Type temperature inputs that measure T1, T2 or differential temperature with a wide range from -328Ëš to 2462ËšF.


Professional Functionality The DL489 includes the professional functions and ranges of AC/DC amps, AC/DC volts, AC/DC microamps, resistance, capacitance, LRA Inrush, non-contact voltage, and is safety rated to CATII 600V and CATII 1000V to the latest 3rd edition standard.


Special Edition This 50th Anniversary Edition DL489 commemorates our milestone by placing the most extensive collection of features in a special edition black housing that includes Min/Max, peak hold, data hold, manual ranging mode, dual backlit display, audible voltage indicator, worklight, magnetic mount, input jack safety lock, low battery indication, auto power off, detachable clamp head, over molded grip, silicone test leads and is backed by a 2-year limited warranty.

Product Functions:

  • True RMS
  • 600A AC/DC
  • 750V AC/1000V DC
  • Resistance 60MΩ
  • Capacitance 2000µF
  • AC/DC microAmps 2000µA
  • Dual temperature
    -328Ëšto 2462ËšF
  • Frequency 99.99kHz
  • Duty cycle
  • Diode test
  • NCV
  • Audible continuity
  • LRA inrush
Item Name : True RMS Digital Clamp Meter
