Viega 25330

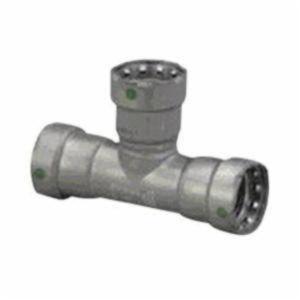

Viega MegaPress™ 25330 Carbon Steel Reducing Tee, 3/4 x 3/4 x 1/2 Inch, Press x Press x Press

  • Mfg. Name: Viega
  • Brand Name: Viega
  • MPN: 25330
  • PSCN: 438962
  • UPC: 691514253305
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Viega MegaPress is the only clean, secure and efficient choice for joining black iron pipe. It is suitable for renovations, repairs or installation of new black iron pipe systems. Viega MegaPress can be installed while a system is live and is approved for use in hydronic heating, compressed air, fire protection and cooling water applications.

  • EPDM sealing element
  • Smart connect feature
  • Provided with 304 stainless steel separator ring and 420 stainless steel grip ring
  • Corrosion resistant coating
  • Viega smart connect feature provides installers added confidence in their ability to ensure the integrity of connections
  • Testing for leaks using the smart connect feature is not a replacement for testing to the requirements of local codes or standards
  • No oil or heavy threading equipment needed
  • Makes secure press connections in less than seven seconds
  • Connection can be made wet or dry
  • Approved for underground applications in accordance with code and local AHJ
  • For use in chilled water, hydronic heating, compressed air, fire sprinkler applications

Standard & Approvals: UL 213, FM Class 1920, IAPMO PS117, ICC LC1002, DNV, CRN OA14541.6, ABS, GL, LR, CAL Fire Listed, Compliant with UPC, UMC, IPC, IMC, NFPA 13, 13D and 13R, 31, 54 and 58, ASME B31 Certified

Application: For Use with Carbon Steel Piping System SCH 5 - 40

Brand : Viega
Sub Brand : MegaPress™
Item Name : Reducing Tee
Nominal Size : 3/4 x 3/4 x 1/2 Inch
Connection Type : Press x Press x Press
Material : Carbon Steel
Pressure Rating : 200 psi
Temperature Rating : 0 - 250 deg F
Dimensions : 2.26 x 2.26 x 2.14 Inch Centre to End
