Honeywell S688A1007/U

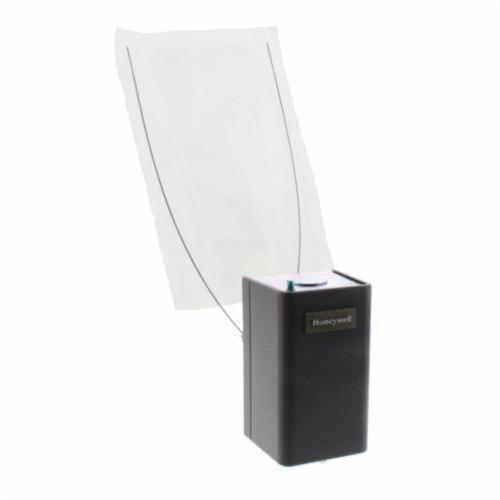

Honeywell S688A1007/U SPDT Sail Switch

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: S688A1007/U
  • PSCN: 8299
  • UPC: 08526708416
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Sail Switch activates an electronic air cleaner, a humidifier, or other equipment in response to airflow from the system fan. The S688A is mounted in the return air duct where the sail will be in the direct path of an unrestricted air stream.

  • Simplified installations with multi-speed fans, inaccessible air handlers, fan motors with voltage or phase different from controlled equipment; eliminated wiring to system fan
  • Polyester film sail mounted on a micro switch snap switch
  • Removable spring counterbalances sail to allow mounting in either vertical (up or down) or horizontal air flow
  • Top and bottom conduit knockouts for wiring convenience
  • Low air velocity switch operation makes at 250 fpm and breaks at 75 fpm

Standard & Approvals: UL Listed: File No. E4436, Guide No. XAPX, CSA Certified

Brand : Honeywell
Item Name : Sail Switch
Contact Configuration : SPDT
Contact Rating : AFL - NO Contacts: 2 A at 24 VAC, 120 VAC, NO Contacts: 1 A at 240 VAC, N.C. Contacts: 1 A at 24 VAC, 120 VAC, N.C. Contacts: 0.5 A at 240 VAC, ALR - NO Contacts: 12 A at 24 VAC, 120 VAC, NO Contacts: 6 A at 240 VAC, N.C. Contacts: 6 A at 24 VAC, 120 VAC, N.C. Contacts: 3 A at 240 VAC, Resistive - NO Contacts: 5 A at 24 VAC, 120 VAC, NO Contacts: 2.5 A at 240 VAC, N.C. Contacts: 2.5 A at 24 VAC, 120 VAC, 240 VAC
Temperature Rating : At Switches: 125 deg F Maximum, at Sail: 170 deg F Maximum
Dimensions : 3-3/4 Inch Width x 2 Inch Depth x 2-15/16 Inch Height, 5 Inch Wide Sail
Operating Velocity : 75 - 250 fpm
Insertion Length : 10 Inch
Switching : SPDT
