Liberty Pumps LSG202M

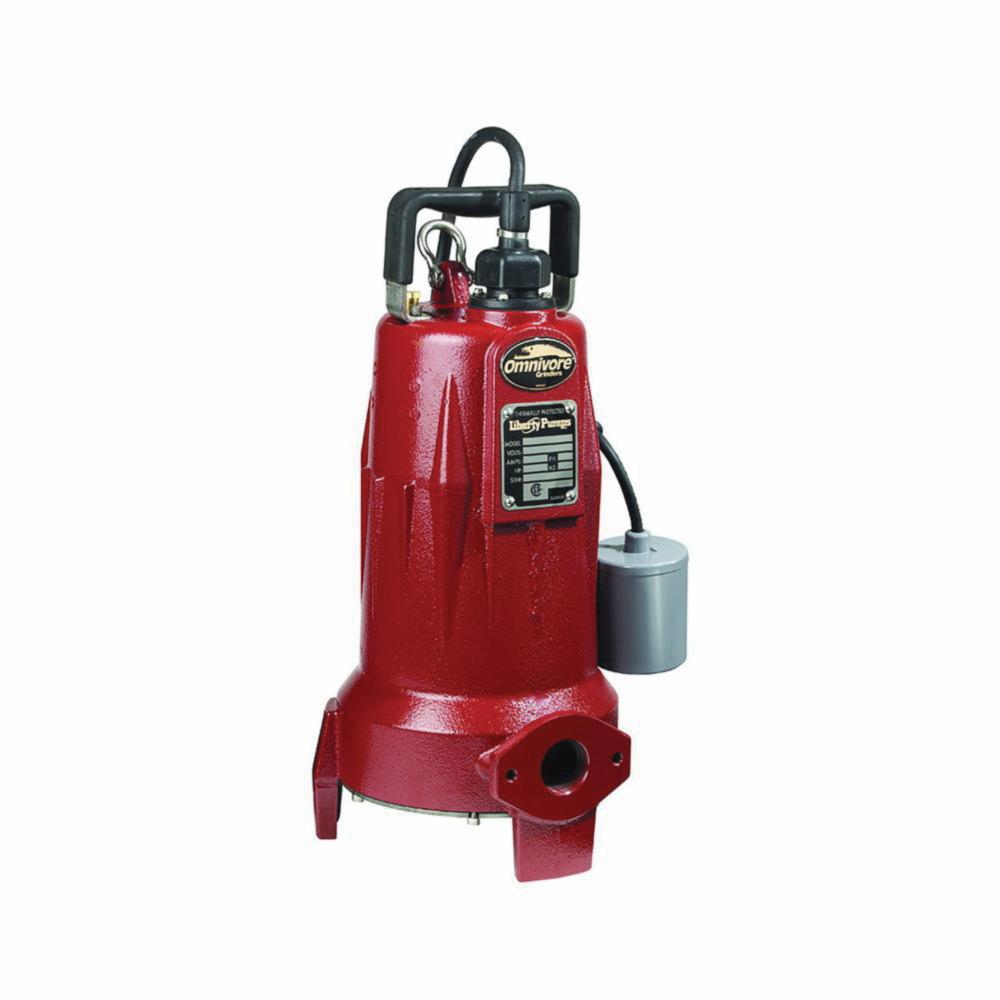

Liberty Pumps Omnivore LSG200 Powder Coated Cast Iron 1-Stage Manual Submersible Grinder Pump, 2 hp, 208 - 230 V, 15 A, 1 PH

  • Mfg. Name: Liberty Pumps
  • Brand Name: Liberty Pumps
  • MPN: LSG202M
  • PSCN: 424615
  • UPC: 671812110180
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Liberty's LSG200-series Omnivore grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. The LSG200-Series features a superior cutting system made of hardened 440 stainless steel-Rockwell C 58, for shearing solids into small particles prior to being passed to the discharge by the impeller under high pressure. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring high pressure sewage pumping. Whether you're replacing an existing grinder pump or customizing a new sewage system, the Omnivore can be packaged within any number of tank sizes.

  • The Omnivore by Liberty is the industry's newest 2 hp grinder pump with new V-Slice cutter technology
  • This new innovation provides more cuts per revolution for superior shredding performance in demanding sewage applications
  • The hardened stainless steel cutting system provides in excess of 300000 cuts per minute and aggressively shreds jeans, shop rags, diapers, sanitary napkins and other difficult solids into a fine slurry
  • A unique open volute design eliminates the cutwater - improving solids flow and reducing potential jamming of material in the volute
  • Other features include a one-piece cast iron body, quick-disconnect power cord, stainless steel impeller and dual shaft seals
  • Capacitors are integral to the pump, eliminating the need for an expensive control panel
  • The pump shall have cast iron support legs, enabling it to be a free standing unit
  • Manual pumps are operable by means of a pump control panel
  • Service factor 1
  • 3-years limited warranty

Standard & Approvals: SSPMA Certified, C/US Listed, CSA certified, ISO 9001

Application: For Individual or Groups of Homes, Motels, Schools, Shopping Centres, Lakefront Developments and Systems Requiring High Pressure Sewage Pumping

Brand : Liberty Pumps
Sub Brand : Omnivore
Series/Model : LSG200
Item Name : Submersible Grinder Pump
Type : 1-Stage, Manual
Horse Power : 2 hp
Discharge : 1-1/4 Inch NPT (Flanged)
Voltage Rating : 208 - 230 V
Amperage Rating : 15 A Full Load, 53 A Locked Rotor
Phase : 1
RPM : 3450 Rpm
Motor Type : Capacitor Start Class B
Cord Length : 25 ft
Base Material : Powder Coated Cast Iron
Maximum Head : 110 ft
Maximum Temperature : 140 deg F Liquid, 221 deg F Thermal Overload, 140 deg C Stator
Height : 19.66 Inch
Frequency Rating : 60 Hz
Width : 9.34 Inch
Length : 9.54 Inch
Flow Rate : 50 gpm
Pump Mounting : Freestanding
