Viega 25011

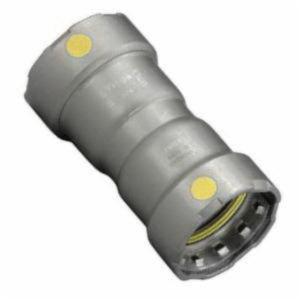

Viega MegaPressG™ 25011 Carbon Steel Coupling with Stop, 1 x 1 Inch, Press x Press

  • Mfg. Name: Viega
  • Brand Name: Viega
  • MPN: 25011
  • PSCN: 422390
  • UPC: 691514250113
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Viega MegaPressG with an HNBR sealing element is the only press fitting system for black iron pipe approved for use in gas and fuel oil applications. Viega MegaPressG is ideal for industrial, commercial and residential applications and performs well in new installations and retrofit projects. Tested to the strictest standards in North America, Viega MegaPressG joins black iron pipe reliably through the engineered design of the fittings and a battery-powered press tool.

  • HNBR sealing element
  • Smart connect feature
  • Provided with 304 stainless steel separator ring and 420 stainless steel grip ring
  • Corrosion resistant coating
  • Viega smart connect feature provides installers added confidence in their ability to ensure the integrity of connections
  • Testing for leaks using the smart connect feature is not a replacement for testing to the requirements of local codes or standards
  • No oil or heavy threading equipment needed
  • Makes secure press connections in less than seven seconds
  • Connection can be made wet or dry
  • Approved for underground applications in accordance with code and local AHJ
  • For use in compressed air, fuel gas and heating oil applications

Standard & Approvals: ANSI LC4/CSA 6.32 Listed, ASME B31, IAPMO LC4, ICC LC4, LR, CRN #OA14541.6, ABS, GL Listed, Compliant with UPC, UMC, IPC, IMC, IFGC, NFPA 54 and 58, CSA B149.1

Application: For Use with Carbon Steel Piping System SCH 5 - 40

Brand : Viega
Sub Brand : MegaPressG™
Item Name : Coupling with Stop
Nominal Size : 1 x 1 Inch
Connection Type : Press x Press
Material : Carbon Steel
Length : 3.26 Inch
Pressure Rating : 125 psi
Temperature Rating : -40 to 180 deg F
