Sioux Chief 654C

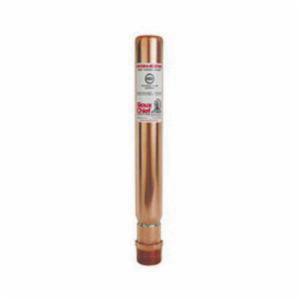

Sioux Chief HydraRester™ 650 Series Copper Tube Piston-Type Water Hammer Arrester, 1 Inch, MIP Thread

  • Mfg. Name: Sioux Chief
  • Brand Name: Sioux Chief
  • MPN: 654C
  • PSCN: 221940
  • UPC: 073923610754
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
  • Sold as pack of 16/Case
Retail Price:
Qty
My List
Add / Remove CPN
  • Piston, poly piston with two EPDM o-rings
  • Male thread fitting, copper MIP thread
  • Piston lubrication, dow-corning, 111 FDA approved silicone compound
  • PEX F1960 fitting, no lead EcoBrass 69300
  • Lifetime cycle tested at U.S. testing laboratories to withstand 10000 shock cycles
  • HydraRester™ male sweat fittings are compatible with press-fitting systems, such as Viega ProPress™ and all push-fitting systems
  • Allows for installation in 2 × 4 wall cavity
  • Installs at any angle
  • Factory tested to withstand 500000 cycles without failure

Standard & Approvals: ASSE to the ANSI/ASSE 1010-2004

Brand : Sioux Chief
Sub Brand : HydraRester™
Series/Model : 650 Series
Item Name : Water Hammer Arrester
Type : Piston-Type
Nominal Size : 1 Inch
Connection Type : MIP Thread
Temperature Rating : 250 deg F
Pressure Rating : 350 psig
Material : Copper Tube
Ring Material : EPDM
Length : 11 Inch
Width : 1-3/8 Inch
Chamber Width : 1-3/8 Inch
Burst Tested Pressure : 2900 psig
Unit Size : C
Number Of Fixture Units : 33 - 60
Air Chamber Volume : 11 cu-Inch
