McDonnell & Miller 140100

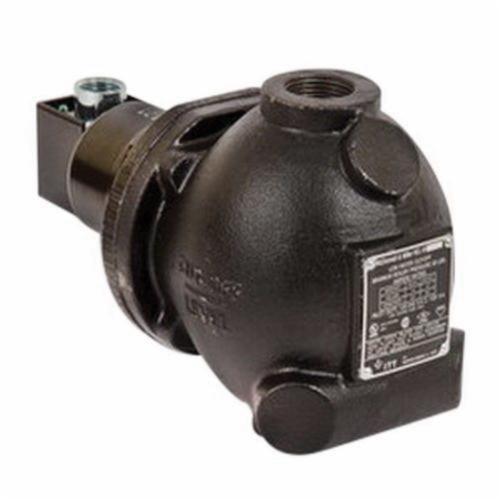

McDonnell & Miller 140100 61 Automatic Float-Style Mechanical Low Water Cut-Off, 3.7 A(FLA), 22.2 A(ALR), 120/240 VAC, 1 Inch NPT
- Mfg. Name: McDonnell & Miller
- Brand Name: McDonnell & Miller
- MPN: 140100
- PSCN: 19609
- UPC: 751875001974
- Min. Ord. Qty: 1
- Qty. Interval: 1
Retail Price:
Qty
- For boilers of any steaming capacity
- Adjustable BX outlet for easy installation
- Dual precision switches for dependable operation of the low water cut-off and alarm or electric water feeder
- Packless bellows
- 1 Inch NPT equalizing pipes and blow down valve required
Standard & Approvals: UL Listed, CSA Certified, FM Approved
Application: For Residential and Commercial Low Pressure Steam Boilers
| Brand | : | McDonnell & Miller |
| Series/Model | : | 61 Series |
| Item Name | : | Low Water Cut-Off |
| Type | : | Float-Style, Mechanical |
| Switch Type | : | Dual Precision |
| Electrical Ratings(ALR/AFL) | : | Full Load: 7.4 A at 120 VAC, 3.7 A at 240 VAC; Locked Rotor: 44.4 A at 120 VAC, 22.2 A at 240 VAC |
| Pressure Rating | : | 20 psi Steam |
| Reset Type | : | Automatic |
| Connection Type | : | 1 Inch NPT |
| Voltage Rating | : | 120/240 VAC |
| Length | : | 9-15/16 Inch |
| Width | : | 5-1/8 Inch |
| Depth | : | 6-1/2 Inch |
| Pilot Duty Rating | : | 125 VA at 120/240 VAC |
