Taco 0014-F1

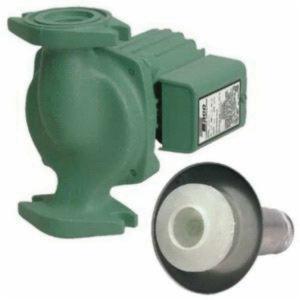

Taco 0014-F1 Cast Iron Circulator Pump, 32 gpm, 115 V, 125 psi, 3250 Rpm, 60 Hz

  • Mfg. Name: Taco
  • Brand Name: Taco
  • MPN: 0014-F1
  • PSCN: 409448
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

High velocity series 0014 cartridge circulator is specifically designed for medium-head/medium-flow applications in large residential/light commercial systems.

  • High velocity performance, compact design
  • Quiet, efficient operation
  • Direct drive, low power consumption
  • Field serviceable unique replaceable cartridge design
  • Self-lubricating, no mechanical seal
  • Unmatched reliability, maintenance free
  • Universal flange-to-flange dimensions and orientation allows the 0014 to easily replace other models
  • Ideal for large BTUH boilers, primary/secondary loops, commercial water heaters, and light commercial heating and cooling systems
  • The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator
  • Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs

Standard & Approvals: C/US UL Listed, NSF/ANSI 372 Certified

Application: For Indoor Use Only

Brand : Taco
Item Name : Circulator Pump
Series/Model : 6 Series
HP Rating : 1/8 hp
Maximum Flow : 32 gpm
Voltage Rating : 115 V
Material : Cast Iron
Impeller Material : Non-Metallic
Inlet Connection : Flange
Outlet Connection : Flange
Amperage Rating : 1.45 A
Pressure Rating : 125 psi
Temperature Rating : 4 - 110 deg C Fluid
Maximum Head : 22 ft
Head Range : 0 - 22 ft
RPM : 3250 Rpm
Phase : 1
Dimension : Dimension A: 5-5/8 Inch; Dimension B: 4-7/8 Inch; Dimension C: 2 Inch; Dimension D: 3-1/16 Inch; Dimension F: 3-5/16 Inch; Dimension G: 4 Inch
Frequency Rating : 60 Hz
Motor Type : Permanent Split Capacitor, Impedance Protected
