Atco FDIR84

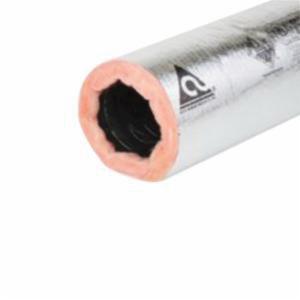

Atco 78 Series Double Ply Polyester Core Insulated Flexible Duct, 8 R-Value, 25 ft x 4 Inch, Gray

  • Mfg. Name: Atco
  • Brand Name: Atco
  • MPN: FDIR84
  • PSCN: 417951
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Atco #078, class 1 air ducts and are manufactured with a tri-directional fiberglass scrim reinforced, grey polyester outer jacket. The inner core of all three products is air-tight and designed for low-to-medium operating pressures in HVAC systems. Atco #076 and 078 have increased insulation for superior thermal performance.

  • This durable, all purpose product has a double ply, grey polyester vapor barrier with tri-directional reinforcements
  • Air-tight inner core - energy efficient/no fiberglass erosion into air stream
  • Encapsulated wire helix - no unraveling when cut to length/quick installation
  • Smooth inner core - low friction loss/low operating cost
  • Thick blanket of fiberglass insulation - energy efficient/excellent thermal characteristic
  • Tough reinforced grey polyester jacket - tear and puncture resistant/low maintenance

Standard & Approvals: UL 181, NFPA 90A and 90B, IMC, IRC, UMC 10-1 (ICC ES REPORT NO. ESR-1268), HUD 515-2.1 (b)

Application: For Residential and Commercial Low-to-Medium Pressure Heating and Air Conditioning Systems

Brand : Atco
Series/Model : 78 Series
Item Name : Flexible Duct
Type : Insulated
Connection Type : Plain End
Length : 25 ft
Diameter : 4 Inch
Material : Double Ply Polyester Core
Finish/Color : Gray
R-Value : 8
Insulation : Fiberglass
Pressure Rating : 6 Inch WG
Temperature Rating : -20 to 140 deg F
