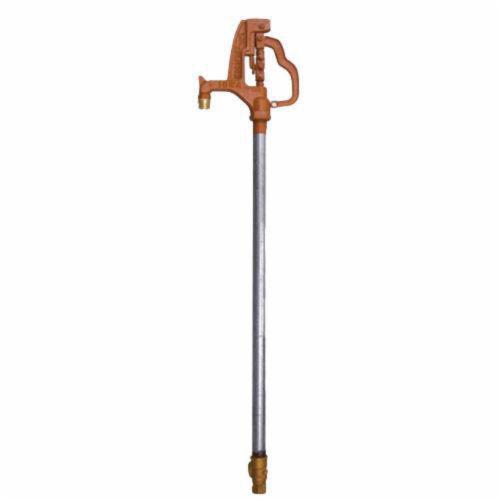

Woodford IOWA® Y34 Galvanized Steel Pipe Casing Lockable Lever Freezeless Yard Hydrant, 3/4 Inch FNPT Inlet x 3/4 Inch Hose

Retail Price:

Qty

Add / Remove CPN

IOWA® hydrants are intended for irrigation purposes and used for filling field spray equipment, cleaning tools and equipment, lawn and garden care, watering livestock - immediate water flow even in sub zero temperatures
1-1/4 Inch galvanized steel pipe casing, 3/8 Inch galvanized steel pipe operating rod
3/4 Inch brass male hose nozzle
Adjustable link provides easy and positive adjustment of the lever lock tension
Flow finder and lock: a simple cam that can be set to automatically obtain the same flow each time or lock against accidental opening
Long-life packing, graphite packing for lubricity and long life
One piece variable flow plunger, large cushion type seal for longer life - is not easily damaged and assures shut-off even when foreign particles are present

Application: For Filling Field Spray Equipment, Cleaning Tools and Equipment, Lawn and Garden Care, Watering Livestock

Brand	:	Woodford
Sub Brand	:	IOWA®
Series/Model	:	Y34
Item Name	:	Yard Hydrant
Type	:	Freezeless
Inlet Size	:	3/4 Inch
Outlet Size	:	3/4 Inch Hose
Connection Type	:	FNPT Inlet
Material	:	Steel Pipe Casing, Cast Iron Head
Finish	:	Galvanized Casing
Handle Material	:	Cast Iron
Handle Type	:	Lockable Lever
Handle Included	:	Yes
Pressure Rating	:	125 psi
Temperature Rating	:	120 deg F
Includes	:	Y34 Head with 3/4 Inch Nozzle, Packing Nut, Packing, Packing Support Washer, Brass Rod Stem, Reducing Coupling, Hex Nut (3), Upper Link, Lower Link, (2) Set Screw, Cam and Clevis Assembly, (2) Link Bolt, Lever Bolt, Lever, 3/4 Inch Brass Hose Nozzle
