S&P TD-150

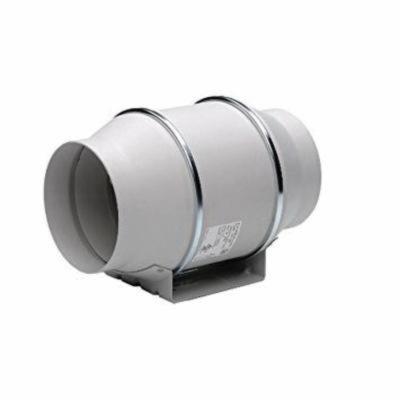

S&P TD-150 TD-MIXVENT Low Speed Inline Mixed Flow Duct Fan, 120 VAC, 250 cfm at 0.25 Inch SP, 6 Inch

  • Mfg. Name: Soler & Palau
  • Brand Name: S&P
  • MPN: TD-150
  • PSCN: 12518
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The S&P TD-Mixvent and TD-Silent series of in-line duct fans have been specially designed to maximize the airflow performance with minimal noise levels within the smallest and most compact of housing sizes. This makes the TD-Mixvent and TD-Silent series the ultimate solution for small to medium sized ventilation installations which require a high airflow to pressure ratio and occupy only the minimum space possible. Example: false ceiling voids, cabinets and many other limited space environments.

  • Mixed flow impeller for excellent air flow to pressure performance ratio
  • Direct connection, two-speed motor
  • Ideal for applications where space is limited
  • Class I electrical insulation
  • IP 44 protection
  • Thermal overload protection
  • Class B motor insulation
  • Sealed for life, ball bearings
Brand : S&P
Item Name : Inline Mixed Flow Duct Fan
Series/Model : TD-MIXVENT
Type : Low Speed
Voltage Rating : 120 VAC
RPM : 2289 Rpm
Wattage Rating : 65 W
CFM : 250 cfm at 0.25 Inch SP
Duct Size : 6 Inch
Material : Plastic
Length : 11-5/8 Inch
Width : 8-3/8 Inch
