Aprilaire

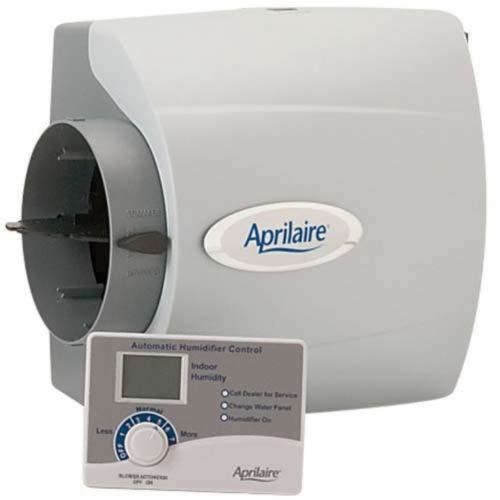

Aprilaire 500 Automatic Bypass Humidifier, 0.5 gph, 3000 sq-ft Capacity

  • Mfg. Name: Aprilaire
  • Brand Name: Aprilaire
  • PSCN: 265832
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Aprilaire Model 500 Humidifier is economical and a proven performer designed for small to mid-sized homes. The Aprilaire Model 500 Humidifier is a whole-home solution that helps you achieve total comfort through humidity control. The Model 500 is installed in your central heating and cooling system ductwork by a local HVAC professional. When you use the Aprilaire Model 500 Humidifier, you eliminate the unhealthy and damaging effects of overly dry air on your family and home.

  • Delivers optimum levels of humidity control with the Automatic Digital Humidifier Control
  • Provides vital service, temperature and relative humidity indicators in manual mode as well
  • Humidifies tightly constructed homes up to 3,000 square foot in size
  • Performs quietly with simple annual maintenance
  • Comes equipped with a drain to flush minerals from the unit
  • Incorporates easy right or left discharge change-over
  • Has an evaporation capacity of 0.50 gallons per hour
Brand : Aprilaire
Series/Model : 500
Item Name : Humidifier
Type : Automatic Bypass
Capacity : 0.5 gph
Voltage Rating : 24 VAC at 60 Hz
Amperage Rating : 0.5 A
Square Foot Capacity : Loose House: 750 sq-ft, Average House: 1500 sq-ft, Tight House: 3000 sq-ft
Water Feed Rate : 3 gph
Dimensions : 15-3/8 Inch Width x 13 Inch Height x 10-1/4 inch Depth
Includes : 24 VAC Transformer, Automatic Digital Humidistat, Remote Temperature Sensor, Saddle Valve, 1 Aprilare #10 Water Panel
Bypass Duct Opening : 6 Inch Round
Plenum Opening : 9-1/2 Inch Height x 9-1/2 Inch Width
