Panasonic FV-08VSL3

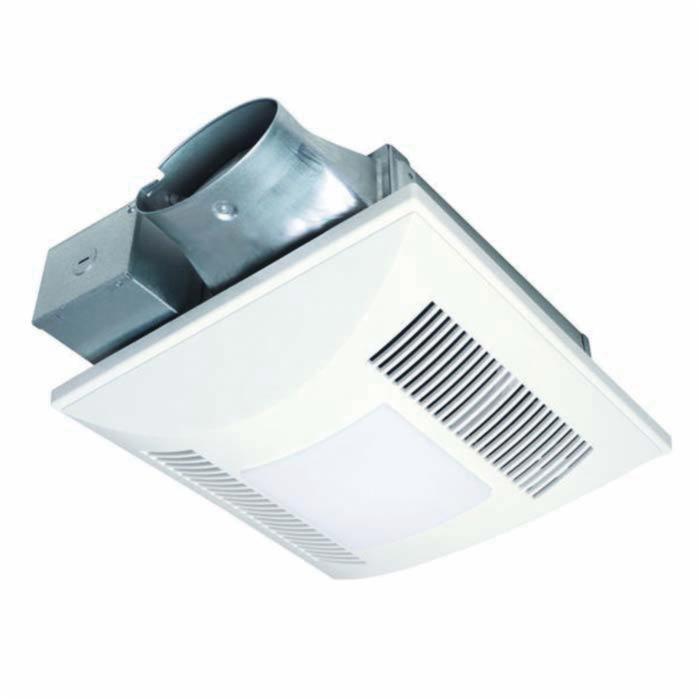

Panasonic WhisperValue™ FV-08VSL3 Ceiling Mount Ventilation Fan with Light, 80/72 cfm, 120 V

  • Mfg. Name: Panasonic
  • Brand Name: Panasonic
  • MPN: FV-08VSL3
  • PSCN: 431968
  • UPC: 885170140141
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

WhisperValue Lite™ Fans are the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan/light available, it actually fits in a 2x4 stud bay. With its slim housing design, WhisperValue Lite fans can be installed almost anywhere – in ceilings or walls. The enclosed AC motors are energy efficient, quiet, and long lasting. Even when operated continuously, they will last for many years. The extremely thin profile WhisperValue Lite fan/light opens up options for where you can install the fans, which are UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings. When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fan/light combinations use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse. Energy efficient lighting is an important part of the latest codes and standards, so Panasonic fans incorporate the most efficient CFL lamps available. Our flush mount grilles incorporate (2) 13W, self-ballasted GU24 base, ENERGY STAR® rated CFL lamps that squeeze out more lumens per watt (greater than 70 LPW!) than other manufacturers do. A 4-watt night light is also included. Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fan/light combinations are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R), sold separately. An optional 26 gauge steel, fire code rated Transfer Register Box (FV-JD) was designed exclusively for use with WhisperValue and WhisperValue Lite Fans to provide room to room powered circulation with ductless heat pumps. The FV-JD is sold separately. Refer to the Accessories Tab for more information. Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.

  • Four - pole totally enclosed condenser motor rated for continuous use
  • Motor equipped with thermal - cutoff fuse
  • Removable with permanently lubricated plug-in motor
  • Rust proof paint, galvanized steel body
  • Integrated dual 4 or 6 Inch diameter duct adaptor
  • Expandable extension bracket up to 24 Inch
  • Unique L-shaped bracket simplifies installation and provides strong support
  • Attractive grille design using PP material and attaches directly to housing with torsion springs
  • 3-year warranty on parts, 1-year warranty on CFL light

Standard/Approvals: UL and cUL Listed for Tub/Shower Enclosure when GFCI Protected Used in Insulated Ceiling (TYPE I.C.), Can be Used to Comply with ASHRAE 62.2, LEED, ENERGY STAR IAP, EarthCraft, California Title 24 and WA Ventilation Code

Application: Ideal Multifamily Solution, Also Good for Single Family and Manufactured Homes

Brand : Panasonic
Sub Brand : WhisperValue™
Item Name : Ventilation Fan with Light
Installation Type : Ceiling
Discharge : 80 cfm at 0.1 Inch SP, 72 cfm at 0.25 Inch SP
Voltage Rating : 120 V
Amperage Rating : 0.19 A
RPM : 825 Rpm at 0.1 Inch SP, 1021 Rpm at 0.25 Inch SP
Hertz : 60 Hz
Wattage Rating : 22.5 W at 80 cfm, 22.9 W at 72 cfm
Sones : 80 cfm at 0.1 Inch SP is 1.0, 72 cfm at 0.25 Inch SP is 1.2
CFM : 80 or 72 cfm
Duct Shape : Oval
Duct Size : 4 Inch
Grille Shape : Square
Grille Length : 13 Inch
Grille Width : 13 Inch
Material : Steel
Finish : Galvanized
Length : 10-1/4 Inch
Width : 10-1/4 Inch
Height : 3-3/8 Inch
Energy Star : Yes
HVI Certified : Yes
Title 24 Compliant : Yes
Mounting Opening Size : 10-1/2 Inch
Energy Efficiency : 3.6 cfm/W
Lamp Color Temperature : 3500K
Color Rendering Index : >80 CRI
Lamp Rated Average Life : 10000 hr
