Panasonic FV-05-11VKL1

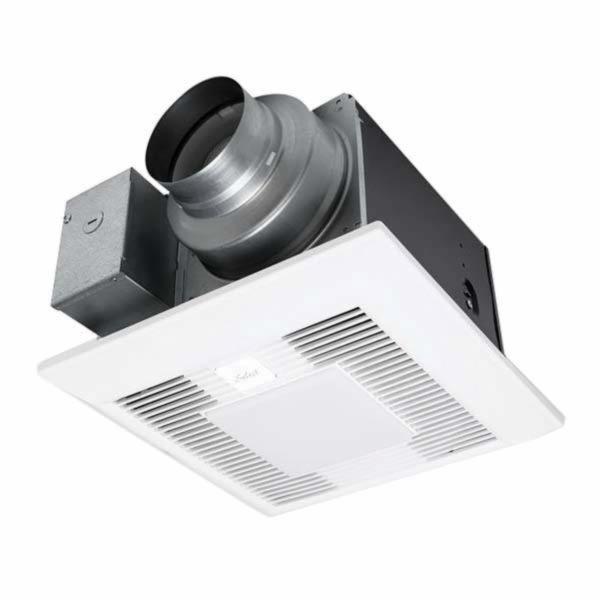

Panasonic WhisperGreen Select™ FV-05-11VKL1 Ceiling Mount Ventilation Fan with Light, 110/50/80 cfm, 120 V

  • Mfg. Name: Panasonic
  • Brand Name: Panasonic
  • MPN: FV-05-11VKL1
  • PSCN: 430871
  • UPC: 885170179950
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

WhisperGreen Select™ is revolutionizing the ventilation fan industry with a new set of features that enable customization and easier installation. This all-purpose Indoor Air Quality (IAQ) solution gives you more than 250 possible configurations; through multiple flow rates, optional Plug 'N Play™ modules and installation flexibility. WhisperGreen Select™ is your total solution for indoor air quality, code compliance, green certification and healthy indoor environments. WhisperGreen Select's customization features really kick in with a set of patented Plug 'N Play™ modules that give you the flexibility to design the perfect fan in advance, or on the fly, for a variety of ventilation applications. The first snap-in slot is dedicated to the pre-installed Multi-Speed (0, 30 to 110 CFM) module with high/low delay timer. The two remaining slots can accommodate the SmartAction® Motion Sensor, Condensation Sensor or NiteGlo™ LED night Light. Refer to the Accessories Tab for more information on our remarkable Plug 'N Play modules. The revolutionary DC motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic DC motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer. Designed to run continuously, WhisperGreen Select can deliver whole-house continuous ventilation. Unable to display. The Flex-Z Fast™ Installation Bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. WhisperGreen Select incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design. For short runs, you can go with a smaller duct size, but long runs are OK too - just move up to the 6 in. duct. Also fits in 2 x 8 construction. Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. Unable to display. Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life. WhisperGreen Select was awarded 2015 Most Efficient. This mark recognizes WhisperGreen Select as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®. WhisperGreen Select fan/light combinations feature a contemporary flush mount grille that incorporates Two replaceable 7W GU24 base LED lamps. Panasonic's advanced LED technology lasts 4 times longer than compact fluorescent lamps and does not contribute to mercury waste when disposed.

  • Enclosed DC brushless motor technology rated for continuous run
  • Fan ventilation rates shall be manually adjustable for 50-80-110 CFM
  • Motor equipped with thermal–cutoff fuse
  • Removable with permanently lubricated plug-in motor
  • Rust proof epoxy and polyester resin coating, 26 gauge galvanized steel body
  • Articulating and expandable installation bracket up to 24 Inch
  • Two replaceable, ENERGY STAR® rated, 7 W GU24 base LED lamps
  • 3-year warranty on parts, 6-years warranty on DC motor, 5-years warranty on LED from original purchase date

Standard/Approvals: UL Listed for Tub/Shower Enclosure when GFCI Protected used in insulated ceiling (TYPE I.C.), Can be Used to Comply with ASHRAE 62.2, LEED, ENERGY STAR IAP, EarthCraft, California Title 24 and WA Ventilation Code

Brand : Panasonic
Sub Brand : WhisperGreen Select™
Item Name : Ventilation Fan with Light
Installation Type : Ceiling
Discharge : 110 cfm at 0.1 Inch SP, 114 cfm at 0.25 Inch SP, 80 cfm at 0.1 Inch SP, 86 cfm at 0.25 Inch SP, 50 cfm at 0.1 Inch SP, 53 cfm at 0.25 Inch SP
Voltage Rating : 120 V
Amperage Rating : 0.42 A
RPM : 960 Rpm at 0.1 Inch SP, 1237 Rpm at 0.25 Inch SP, 837 Rpm at 0.1 Inch SP, 1157 Rpm at 0.25 Inch SP, 740 Rpm at 0.1 Inch SP, 1081 Rpm at 0.25 Inch SP
Hertz : 60 Hz
Wattage Rating : 11.1 W at 0.1 Inch SP, 18 W at 0.25 Inch SP, 6.0 W at 0.1 Inch SP, 11.1 W at 0.25 Inch SP, 4.0 W at 0.1 Inch SP, 7.0 W at 0.25 Inch SP
Sones : 110 cfm at 0.1 Inch SP is 0.4, 114 cfm at 0.25 Inch SP is 0.9, 80 cfm at 0.1 Inch SP is Less than 0.3, 86 cfm at 0.25 Inch SP is 0.6, 50 cfm at 0.1 Inch SP is Less than 0.3, 53 cfm at 0.25 Inch SP is Less than 0.3
CFM : 110, 50 and 80 cfm
Duct Shape : Round
Duct Size : 4 Inch
Grille Shape : Square
Grille Length : 13 Inch
Grille Width : 13 Inch
Control Type : On/Off Switch
Material : Steel
Finish : Galvanized
Length : 10-1/4 Inch
Width : 10-1/4 Inch
Height : 7-3/8 Inch
Energy Star : Yes
HVI Certified : Yes
Title 24 Compliant : Yes
Mounting Opening Size : 10-1/2 Inch
Energy Efficiency : 50 cfm: 12.8 cfm/W, 80 cfm: 13.3 cfm/W, 110 cfm: 9.9 cfm/W
Lamp Color Temperature : 3000K
Color Rendering Index : >80 CRI
Lamp Rated Average Life : 40000 hr
