Panasonic FV-11VQ5

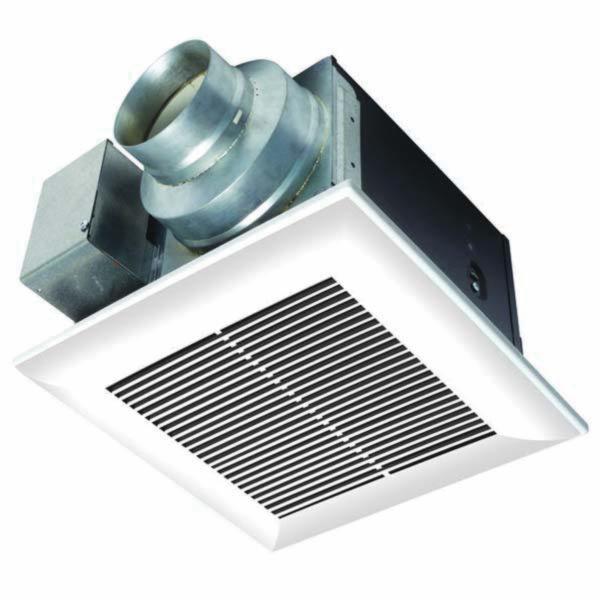

Panasonic WhisperCeiling™ FV-11VQ5 Ceiling Mount Ventilation Fan, 110/91 cfm, 120 V
- Mfg. Name: Panasonic
- Brand Name: Panasonic
- MPN: FV-11VQ5
- PSCN: 430853
- UPC: 885170005617
- Min. Ord. Qty: 1
- Qty. Interval: 1
The workhorse of the Panasonic line, WhisperCeiling™ is time-tested and customer approved for its quiet, yet powerful consistency. Rated for continuous use, WhisperCeiling vent fans are a simple way to incorporate an energy efficient ventilation strategy, and are a great choice for new and remodel residential applications. WhisperCeiling fans feature a totally enclosed condenser AC motor and a double-tapered blower wheel to quietly move air-even at twice the static pressure as the industry standard. WhisperCeiling exceeds the performance measurement for ASHRAE 62.2, ENERGY STAR® 3.0, and LEED for Homes. When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse. WhisperCeiling incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design. For short runs, you can go with a smaller duct size, but long runs are OK, too - just move up to 6 in. duct. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
- Four - pole totally enclosed condenser motor rated for continuous use
- Motor equipped with thermal - cutoff fuse
- Removable with permanently lubricated plug-in motor
- Rust proof paint, galvanized steel body
- Detachable dual 4 or 6 Inch diameter duct adaptor
- Built in backdraft damper
- Expandable extension bracket up to 24 Inch
- Double hanger bar system allowing for ideal positioning
- Attractive grille design using PP material and attaches directly to housing with torsion springs
- 3-year warranty on parts
Standard/Approvals: UL and cUL Listed for Tub/Shower Enclosure when GFCI Protected, Can be Used to Comply with ASHRAE 62.2, LEED, ENERGY STAR IAP, EarthCraft, California Title 24 and WA Ventilation Code
Application: Ideal for New and Remodel Residential Applications
| Brand | : | Panasonic |
| Sub Brand | : | WhisperCeiling™ |
| Item Name | : | Ventilation Fan |
| Installation Type | : | Ceiling |
| Discharge | : | 110 cfm at 0.1 Inch SP, 91 cfm at 0.25 Inch SP |
| Voltage Rating | : | 120 V |
| Amperage Rating | : | 0.18 A at 110 cfm, 0.17 A at 91 cfm |
| RPM | : | 950 Rpm at 0.1 Inch SP, 1161 Rpm at 0.25 Inch SP |
| Hertz | : | 60 Hz |
| Wattage Rating | : | 21.1 W at 110 cfm, 20.7 W at 91 cfm |
| Sones | : | 110 cfm at 0.1 Inch SP is Less than 0.3, 91 cfm at 0.25 Inch SP is 0.5 |
| CFM | : | 110 or 91 cfm |
| Duct Shape | : | Round |
| Duct Size | : | 4 or 6 Inch |
| Grille Shape | : | Square |
| Grille Length | : | 13 Inch |
| Grille Width | : | 13 Inch |
| Material | : | Steel |
| Finish | : | Galvanized |
| Length | : | 10-1/4 Inch |
| Width | : | 10-1/4 Inch |
| Height | : | 7-2/5 Inch |
| Energy Star | : | Yes |
| HVI Certified | : | Yes |
| Title 24 Compliant | : | Yes |
| Mounting Opening Size | : | 10-1/2 Inch |
| Energy Efficiency | : | 5.3 cfm/W |
