Panasonic FV-08VS3

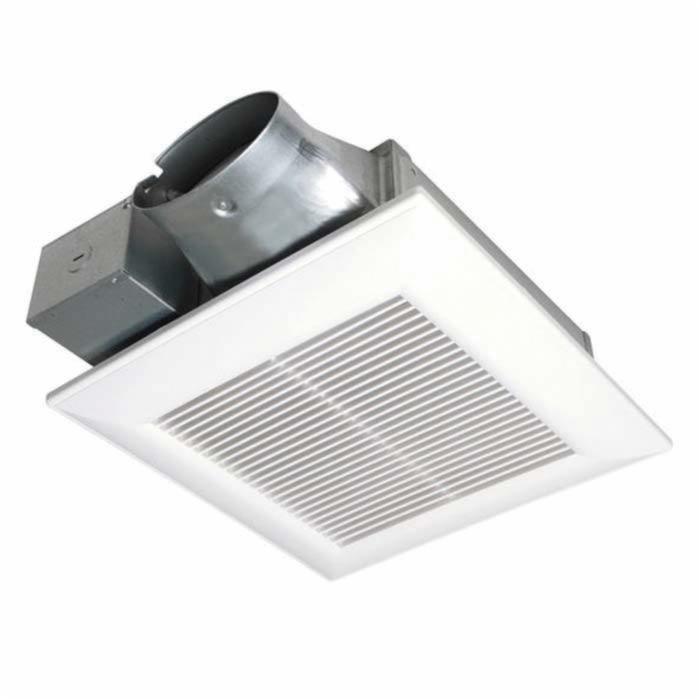

Panasonic WhisperValue™ FV-08VS3 Ceiling Mount Ventilation Fan, 80/72 cfm, 120 V
- Mfg. Name: Panasonic
- Brand Name: Panasonic
- MPN: FV-08VS3
- PSCN: 431967
- UPC: 885170140172
- Min. Ord. Qty: 1
- Qty. Interval: 1
WhisperValue™ Fans are the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2x4 stud bay. With its slim housing design, WhisperValue fans can be installed almost anywhere – in ceilings or walls. The enclosed AC motors are energy efficient, quiet, and long lasting. Even when operated continuously, they will last for many years. The extremely thin profile WhisperValue fan opens up options for where you can install the fans, which are UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings. When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse. Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R), sold separately. An optional 26 gauge steel, fire code rated Transfer Register Box (FV-JD) was designed exclusively for use with WhisperValue Fans to provide room to room powered circulation with ductless heat pumps. The FV-JD is sold separately. Refer to the Accessories Tab for more information. Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
- Four - pole totally enclosed condenser motor rated for continuous use
- Motor equipped with thermal - cutoff fuse
- Removable with permanently lubricated plug-in motor
- Rust proof paint, galvanized steel body
- 4 Inch diameter duct
- Built in backdraft damper
- Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
- Unique L-shaped bracket simplifies installation and provides strong support
- Attractive grille design using PP material and attaches directly to housing with torsion springs
- 3-year warranty on parts
Standard/Approvals: UL and cUL Listed for Tub/Shower Enclosure when GFCI Protected, Can be Used to Comply with ASHRAE 62.2, LEED, ENERGY STAR IAP, EarthCraft, California Title 24 and WA Ventilation Code
Application: Ideal for Single Family and Manufactured Homes
| Brand | : | Panasonic |
| Sub Brand | : | WhisperValue™ |
| Item Name | : | Ventilation Fan |
| Installation Type | : | Ceiling |
| Discharge | : | 80 cfm at 0.1 Inch SP, 72 cfm at 0.25 Inch SP |
| Voltage Rating | : | 120 V |
| Amperage Rating | : | 0.18 A |
| RPM | : | 778 Rpm at 0.1 Inch SP, 997 Rpm at 0.25 Inch SP |
| Hertz | : | 60 Hz |
| Wattage Rating | : | 21.2 W at 80 cfm, 21.5 W at 72 cfm |
| Sones | : | 80 cfm at 0.1 Inch SP is 1.0, 72 cfm at 0.25 Inch SP is 1.2 |
| CFM | : | 80 or 72 cfm |
| Duct Shape | : | Oval |
| Duct Size | : | 4 Inch |
| Grille Shape | : | Square |
| Grille Length | : | 13 Inch |
| Grille Width | : | 13 Inch |
| Material | : | Steel |
| Finish | : | Galvanized |
| Length | : | 10-1/4 Inch |
| Width | : | 10-1/4 Inch |
| Height | : | 3-3/8 Inch |
| Energy Star | : | Yes |
| HVI Certified | : | Yes |
| Title 24 Compliant | : | Yes |
| Mounting Opening Size | : | 10-1/2 Inch |
| Energy Efficiency | : | 3.8 cfm/W |
