Nibco NL1T00B

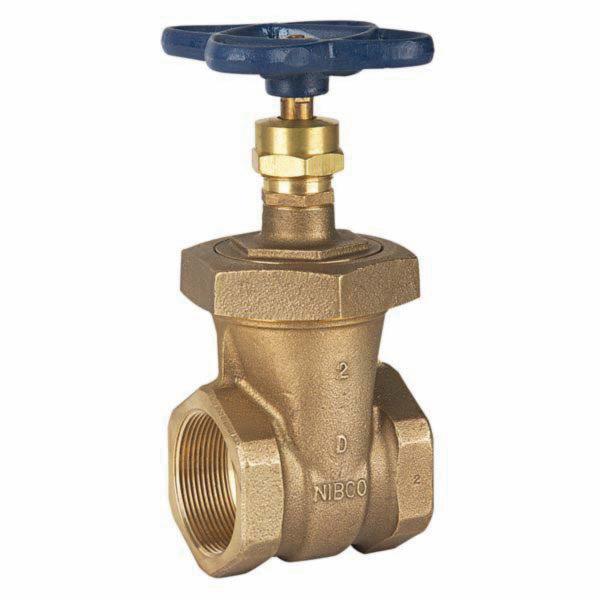

Nibco T-136 Bronze Multi-Turn Gate Valve, 1-1/4 Inch FNPT

  • Mfg. Name: Nibco
  • Brand Name: Nibco
  • MPN: NL1T00B
  • PSCN: 407398
  • UPC: 039923619808
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Nibco® bronze gate valve features a union bonnet for service where reparability in-line is required. Non-rising stem gate valves are used when shut off is required and a space saving is necessary. The female threaded ends allow for ease of installation. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. The Nibco® bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Please refer to Nibco technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose Nibco® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. Nibco® gate valves are backed by the Nibco 5-year 125% limited warranty.

  • Non-rising stem
  • Solid wedge
  • Union bonnet
  • Dezincification resistant
  • Use in US drinking water applications is prohibited after January 3, 2014

Standard/Approvals: Conforms to MSS SP-80

Application: Used in Commercial and Industrial Applications, Including Hot and Cold Water, HVAC, Steam, Compressed Air, Gas and Other General Utility Services

Brand : Nibco
Series/Model : T-136
Item Name : Gate Valve
Type : Multi-Turn
Nominal Size : 1-1/4 Inch
Connection Type : FNPT
Media : Water, Gas
Pressure Rating : 150 psi/10.3 bar Saturated Steam to 366 deg F/185 deg C, 300 psi/20.7 bar Non-Shock Cold Working Pressure
Body Material : ASTM B 62 Cast Bronze
Seat : Bronze
Seal : Bronze
Stem : Silicon Bronze
Packing : Aramid Fibers with Graphite
Bonnet : ASTM B 62 Bronze
Actuation/Operator : Standard Handwheel
Pressure Class : #150
Weight : 3.52 lb
