Nibco NLR100F

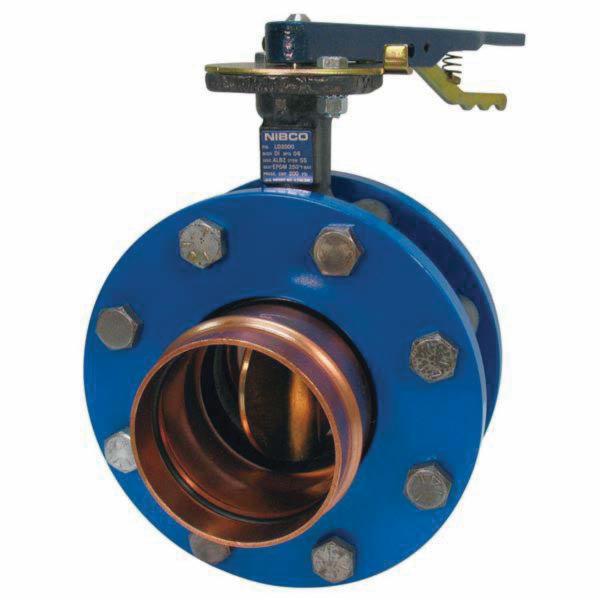

Nibco Press System® PFD2000-3 Lever Handle Quarter-Turn Butterfly Valve, 3 Inch Press Female

  • Mfg. Name: Nibco
  • Brand Name: Nibco
  • MPN: NLR100F
  • PSCN: 406039
  • UPC: 039923242921
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Nibco® Press System® lug style butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shutoff at 200 psi. The valve features press-to-connect end connections with an inboard bead and EPDM O-rings for quick and easy joinery to the piping system. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The Nibco® lug type butterfly valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water. The ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. With the internal stem/disc geometric drive design, there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. The unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. The Nibco® Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. Please refer to Nibco technical data sheets and catalogs for engineering and installation information. Nibco® Press System® applies the proven performance of press technology to Nibco valves and fittings -- the most specified flow control products in the industry. The Nibco® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Nibco® Press System® valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, Nibco is the preferred brand in the industry.

  • Extended neck
  • Geometric drive
  • Molded-in seat liner
  • Aluminum bronze disc

Standard/Approvals: Conform to MSS SP-67, SP-25, API Std 609, NSF/ANSI-8 Commercial Hot 180 deg F (Includes Annex F and G) and NSF/ANSI-372

Application: Ideal for Commercial and Some Light Industrial Process Applications, Including HVAC and Vacuum Services, in Addition to Hot and Cold Potable Water

Brand : Nibco
Sub Brand : Press System®
Series/Model : PFD2000-3
Item Name : Butterfly Valve
Type : Quarter-Turn
Nominal Size : 3 Inch
Connection Type : Press Female
Media : Water
Pressure Rating : 200 psi Valve, 3.8 bar Non Shock Cold Working Pressure
Temperature Rating : 250 deg F
Body Material : Ductile Iron
Seat : EPDM Rubber
Seal : EPDM Rubber
Stem : ASTM A 582 Type 416 Stainless Steel
Actuation/Operator : Lever-Lock Handle
Weight : 26.571 lb
