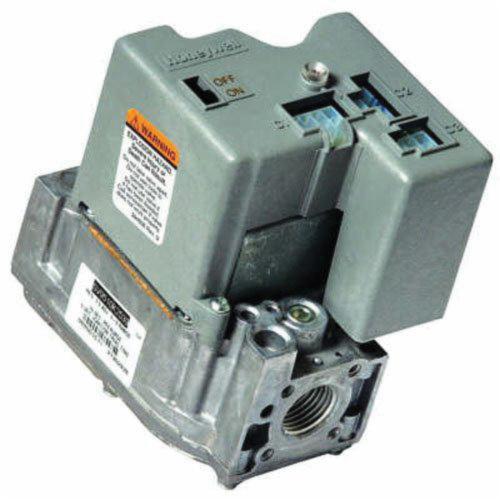

International Comfort Products SV9641M4510

International Comfort Products Honeywell SmartValve™ SV9641M4510 Intermittent Natural Gas Hot Surface Pilot Ignition Valve, 24 VAC, 3/4 Inch NPT, 3.5 Inch WC Setting

  • Mfg. Name: International Comfort Products
  • Brand Name: International Comfort Products
  • MPN: SV9641M4510
  • PSCN: 13391
  • UPC: 085267297684
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

SmartValve system controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. The Q3450 or Q3480 pilot hardware supplies the low voltage igniter, flame sensor and pilot burner. These ignition system controls provide all gas ignition safety functions by controlling gas flow, ignition source, and a 120 VAC or 240 VAC combustion air blower. The controls also monitor the appliance airflow proving switch and limit string to assure proper appliance operation, and provide pre purge, post purge, and timed trial for pilot ignition with 100 percent shutoff and continuous retry. A diagnostic LED indicates system status. These controls communicate directly with an electronic fan timer (ST9160 electronic fan timer for single stage applications, ST9162 Electronic Fan Timer for two-stage applications) in typical forced warm air furnace applications.

  • Intermittent HSI pilot with combustion air control and limit monitoring forced air furnace
  • Ignitor warm - up time 5 sec, 15 sec prepurge, standard opening, 90 sec ignition trial

Application: For use with Combustion Air Control And Limit Monitoring Forced Air Furnace

Brand : International Comfort Products
Sub Brand : Honeywell SmartValve™
Item Name : Hot Surface Pilot Ignition Valve
Type : Intermittent, Natural Gas
Voltage Rating : 24 VAC
Temperature Rating : -40 to 175 deg F
Includes : Natural Gas to LP Conversion Kit, (2) 3/4 Inch - 1/2 Inch Reducer Bushings
For Use With : C8NL050B12A1, NTGM075EGA, H8DNL100L20A1, MUF050W3B1, N8MPN075B12A1 Furnace
