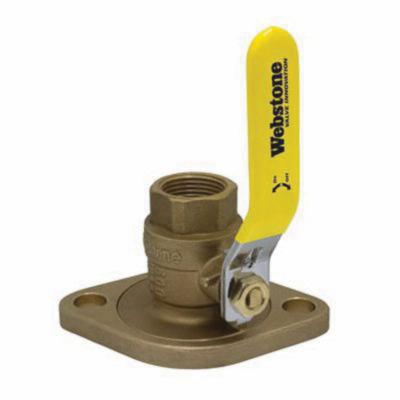

Webstone Valve 41404

Webstone Valve The Isolator® 4140 Series Forged Brass Full Port Uni-Flange Ball Valve, 1 Inch IPS x 1 Inch Flange, 600 psi WOG

  • Mfg. Name: Webstone Valve
  • Brand Name: Webstone Valve
  • MPN: 41404
  • PSCN: 7930
  • UPC: 98268344332
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Full port forged brass uni-flange ball valves with detachable rotating flange, adjustable packing gland, bonus wing style "T" handle, nuts and bolts
  • Actuated by a blowout proof stem and features an adjustable packing gland
  • Flange features a conical inlet to minimize turbulence
  • The rotating flange is secured by a snug-fit snap-right that provides a greater control over positioning during installation

Standard/Approvals: ISO 9001 Certified, Threaded Ends Comply With ANSI B1.20.1, NSF/ANSI 61 And NSF/ANSI 372

Application: For Residential, Commercial Or Industrial Use With Water Or A Glycol Mixture

Brand : Webstone Valve
Sub Brand : The Isolator®
Item Name : Ball Valve
Series/Model : 4140 Series
Type : Full Port, Uni-Flange
Nominal Size : 1 x 1 Inch
Connection Type : IPS x Flange
Media : Water/Glycol Mixture
Pressure Rating : 600 psi WOG
Temperature Rating : 100 deg F
Body Material : Forged Brass
Ball Material : HCP Brass
Seat : PTFE
Seal : PTFE
Stem : Brass
Packing : Brass
Actuation/Operator : Lever Handle
