Red-White Valve 5065-1/2

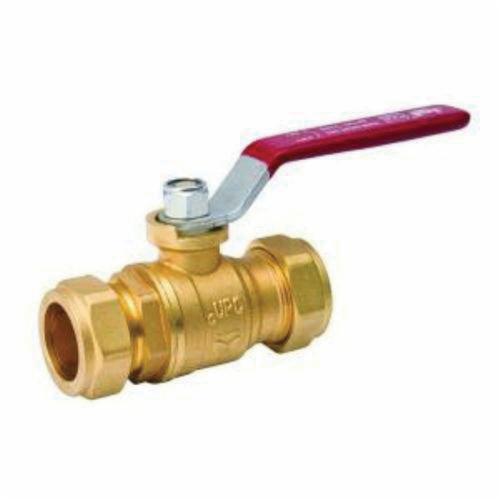

Red-White Valve 5065 Brass 2-Piece Full Port Ball Valve, 1/2 Inch Compression, 600 psi WOG

  • Mfg. Name: Red-White Valve
  • Brand Name: Red-White Valve
  • MPN: 5065-1/2
  • PSCN: 306150
  • UPC: 670779565040
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Blow-out proof stem
  • O-ring NBR packing
  • Zinc plated steel handle and handle nut

Standard/Approvals: NSF61-8 Certified, Truesdail Certified To ANSI/NSF 61

Brand : Red-White Valve
Item Name : Ball Valve
Series/Model : 5065
Type : 2-Piece, Full Port
Nominal Size : 1/2 Inch
Connection Type : Compression
Pressure Rating : 600 psi WOG
Temperature Rating : 15 to 160 deg F
Opening Size : 0.59 Inch
Body Material : Brass
Ball Material : Chrome-Plated Brass
Seat : PTFE
Stem : Brass
Packing : NBR
Actuation/Operator : Lever Handle
Flow Co-Efficient (Cv) : 15
Dimensions : 2.9 Inch Length
Weight : 0.6 lb
