Red-White Valve 5020AB-1/2

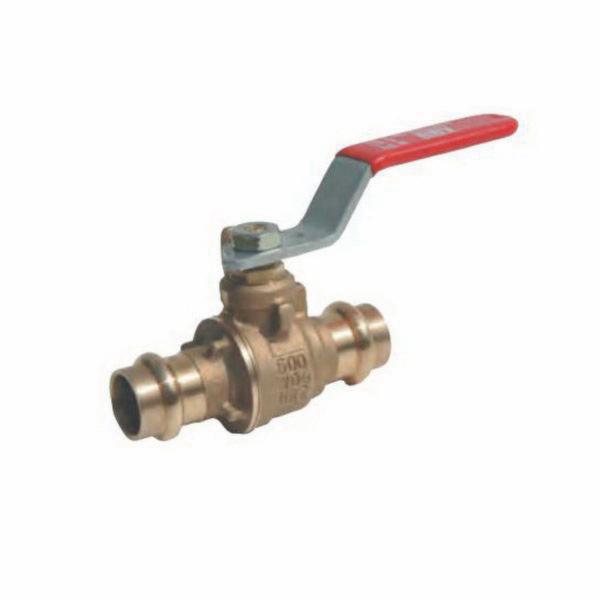

Red-White Valve 5020AB Low-Lead Brass 2-Piece Full Port Ball Valve, 1/2 Inch Dual EzPress End, 600 psi WOG

  • Mfg. Name: Red-White Valve
  • Brand Name: Red-White Valve
  • MPN: 5020AB-1/2
  • PSCN: 409163
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Blow-out proof stem
  • Adjustable packing nut
  • Dacromet steel handle and zinc plated steel handle nut

Standard/Approvals: MSS SP-110 Compliant, AB1953 Certified, Truesdail Certified To ANSI/NSF 61, NSF61-G And NSF-372 Certified

Brand : Red-White Valve
Item Name : Ball Valve
Series/Model : 5020AB
Type : 2-Piece, Full Port
Nominal Size : 1/2 Inch
Connection Type : Dual EzPress End
Pressure Rating : 600 psi WOG
Temperature Rating : 266 deg F
Opening Size : 0.64 Inch
Body Material : Low-Lead Brass
Ball Material : Chrome-Plated Brass
Seat : PTFE
Stem : Brass
Packing : PTFE
Actuation/Operator : Lever Handle
Flow Co-Efficient (Cv) : 15
Weight : 0.55 lb
