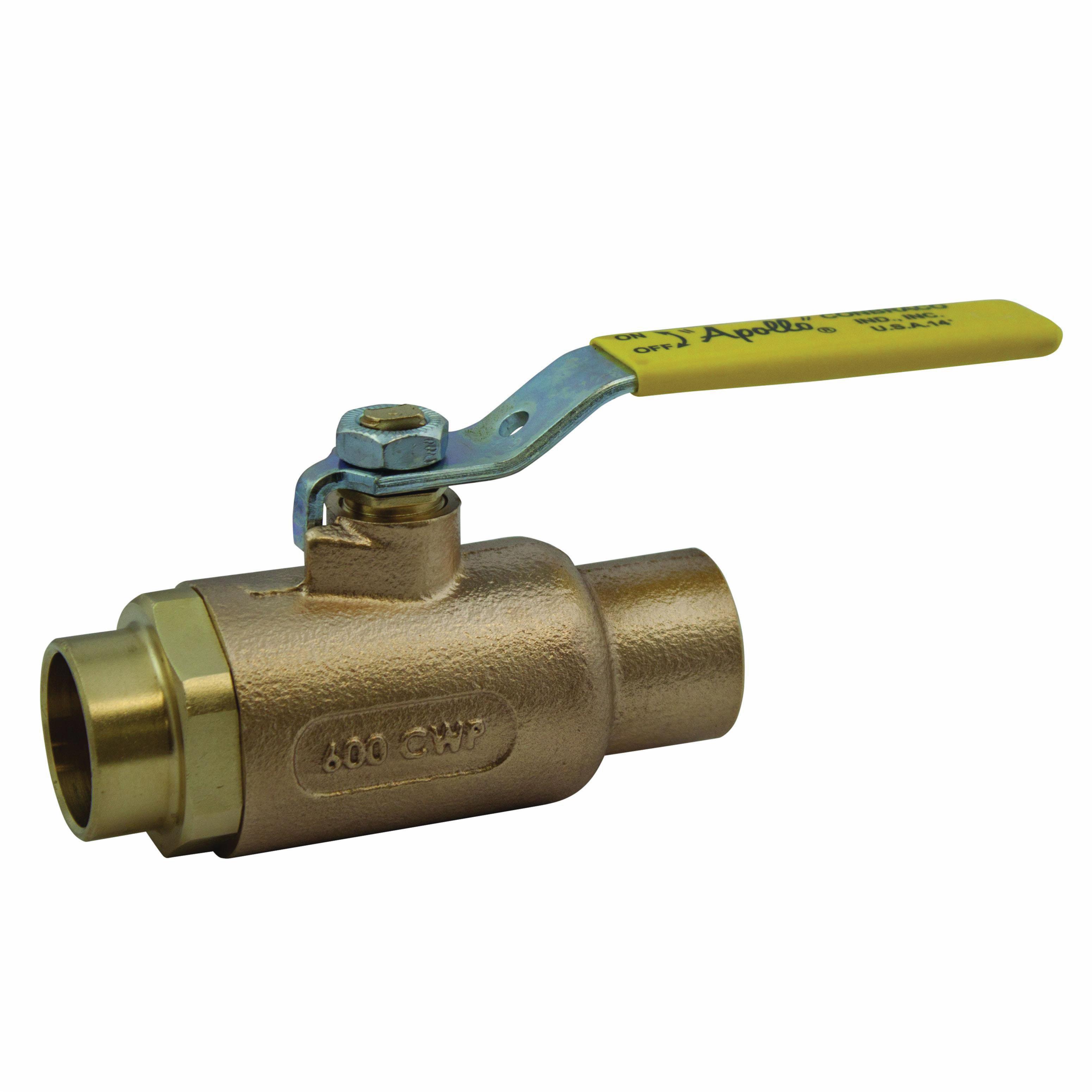

Apollo Valves 70-203-01

Apollo Valves 70-200 Series Bronze General Purpose 2-Piece Standard/Full Port Ball Valve, 1/2 Inch Solder, 600 psi WOG

  • Mfg. Name: Conbraco Industries
  • Brand Name: Apollo Valves
  • MPN: 70-203-01
  • PSCN: 20459
  • UPC: 670750664908
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Apollo® 70 series is the most widely used and trusted bronze ball valve in the industry. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo's South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

  • Premium materials and heavy duty construction
  • Adjustable stem packing gland
  • Blow-out proof stem design
  • 100% factory tested
  • Vacuum service to 29 Inch mercury
  • Steel, zinc plated with vinyl lever and grip and RPTFE stem bearing
  • 5-year limited warranty

Standard/Approvals: MSS SP-110 Compliant, CSA B51 CRN: OC10908.5C, ARRA Compliant

Brand : Apollo Valves
Item Name : Ball Valve
Series/Model : 70-200 Series
Type : 2-Piece, Standard/Full Port, General Purpose
Nominal Size : 1/2 Inch
Connection Type : Solder x Solder
Number Of Ports/Ways : 2
Pressure Rating : 600 psi WOG, 150 psi SWP
Temperature Rating : 500 deg F
Opening Size : 1/2 Inch
Body Material : Bronze
Ball Material : Chrome-Plated Bronze
Seat : RPTFE
Seal : PTFE
Stem : B16 Brass
Packing : MPTFE
Actuation/Operator : Lever Handle
Flow Co-Efficient (Cv) : 15
Dimensions : 2.87 Inch Length
Weight : 0.71 lb
Handle Material : Zinc-Plated Steel with Vinyl Grip
