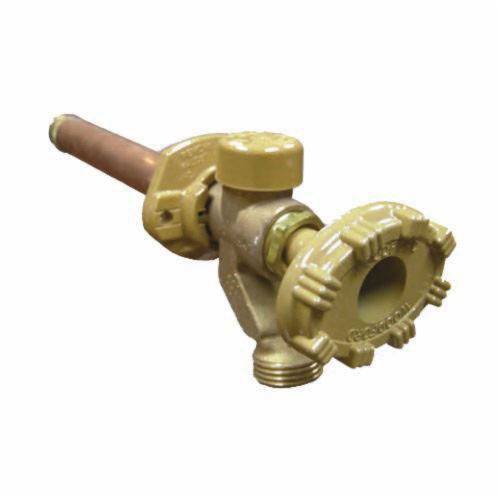

Woodford 19CP-12

Woodford 19 Brass Handwheel Freezeless Anti-Siphon Wall Faucet With Burst Protection, 1/2 Inch MPT x Female Sweat, 12 Inch T

  • Mfg. Name: Woodford
  • Brand Name: Woodford
  • MPN: 19CP-12
  • PSCN: 2471
  • UPC: 671090010325
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The freezeless model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.

  • Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
  • 3/4 Inch male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No-lead solder
  • Standard "O" size seat washer
  • Oval, powder-coated, die-cast aluminum handle
  • Adjustable polycarbonate wall flange

Standard/Approvals: CSA And C/UPC Certified, ASSE Standards

Application: For Year-Round Residential Irrigation Purpose Regardless Of Outside Temperature

Brand : Woodford
Item Name : Wall Faucet with Burst Protection
Series/Model : 19
Type : Freezeless, Anti-Siphon
Inlet Size : 1/2 Inch
Outlet Size : 1/2 Inch
Connection Type : MPT x Female Sweat
Wall Thickness : 12 Inch
Material : Brass
Handle Material : Die-Cast Aluminum
Handle Type : Handwheel
Handle Included : Yes
Pressure Rating : 125 psi
Temperature Rating : 120 deg F
Length : 12-1/2 Inch Rough-In
