DiversiTech 230-WC4

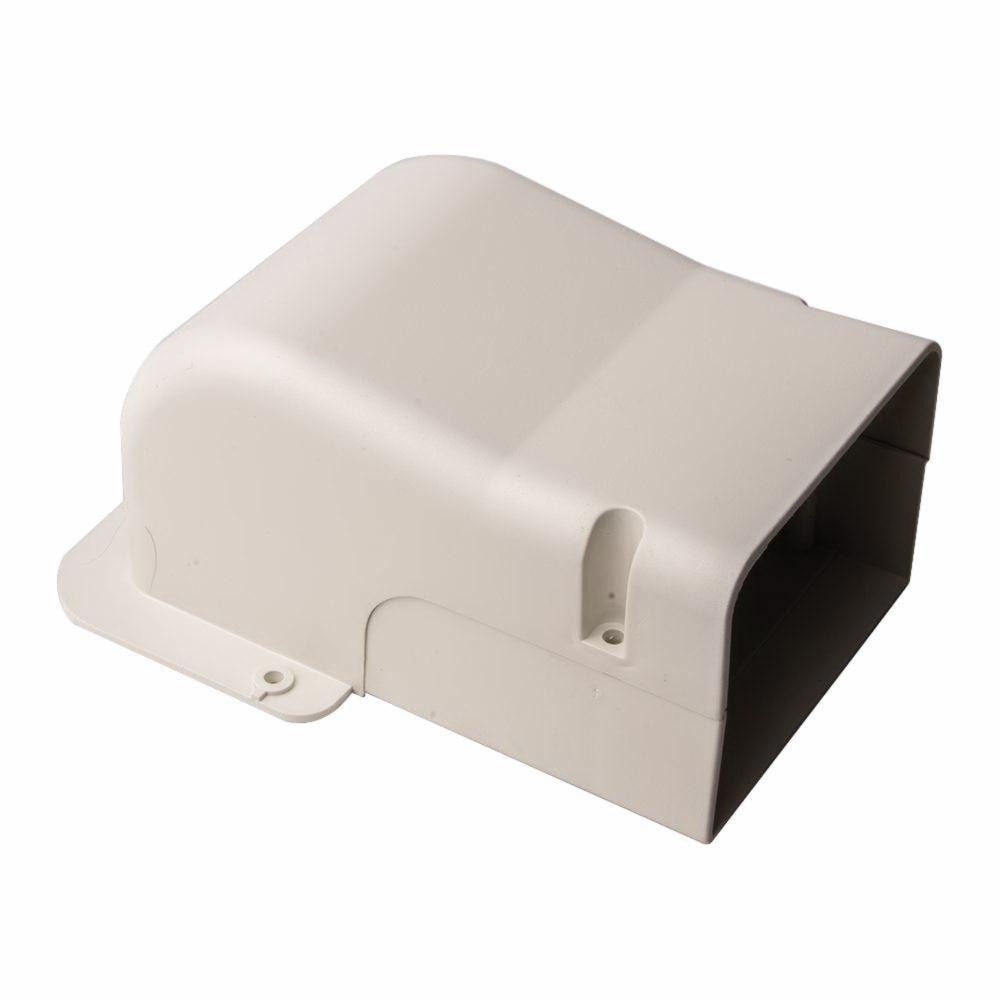

DiversiTech SpeediChannel™ 230-WC4 PVC Wall Penetration Cover

  • Mfg. Name: DiversiTech
  • Brand Name: DiversiTech
  • MPN: 230-WC4
  • PSCN: 310637
  • UPC: 095247126965
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Wall sleeves and penetration covers are used to transition from the SpeediChannel™ system to a through wall penetration. The wall sleeve creates a neat hole through the wall, and the line set is covered by the wall cover. DiversiTech's wall covers are designed to allow for easy installation, even after the line set has been installed. A unique hooking and fastening arrangement allows for quick and easy installation. Each wall cover is individually packed, and is furnished complete with stainless steel screws to attach the wall cover to the base. Three screws (supplied by others) are needed to fasten the wall cover to whatever type of wall construction the system is being installed on.

Standard/Approvals: UL 94V.-0 Fire rating

Brand : DiversiTech
Sub Brand : SpeediChannel™
Item Name : Wall Penetration Cover
Color/Finish : White
Nominal Size : 4 Inch
Length : 7-1/2 Inch
Liquid Line Size : Mini Split: 2 x 1/4 Inch, Conventional Split: 3/8 Inch Liquid Line
Suction Line Size : Mini Split: 2 x 3/8 Inch, Conventional Split: 1-1/8 Inch
Material : PVC
Temperature Rating : -4 to 140 deg F
Includes : Three Stainless Steel Screws
Width : 1/2 Inch
Height : 4-1/4 Inch
Drain Hose : 2 x 3/4 Inch O.D Mini Split System, 3/4 Inch Conventional Split System
