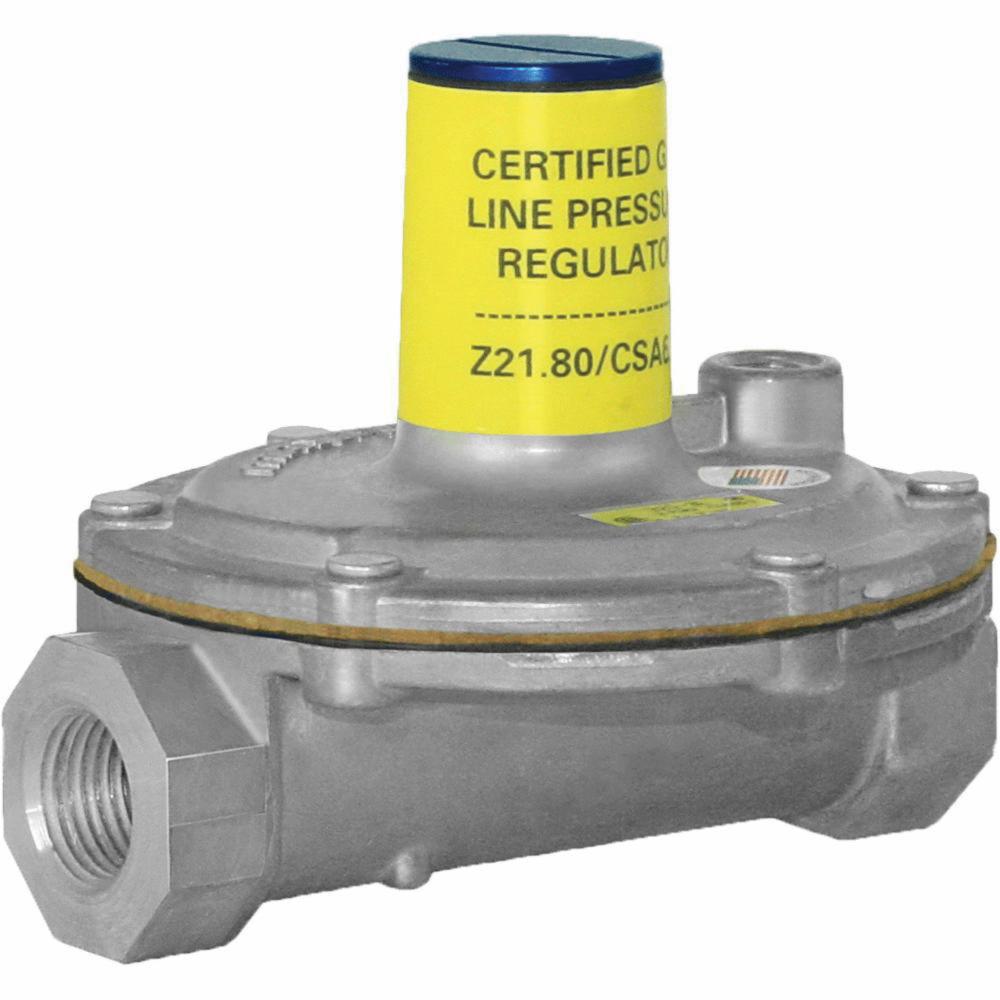

Maxitrol 325-7AL-1.25-12A49

Maxitrol 325-L Series Aluminum Housing Lever Acting Line Regulator With Vent Limiter, 1-1/4 Inch x 1-1/4 Inch, NPT, 1250000 BTU/hr

  • Mfg. Name: Maxitrol
  • Brand Name: Maxitrol
  • MPN: 325-7AL-1.25-12A49
  • PSCN: 386239
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Maxitrol's 325-L series line pressure regulators are for 2 psi piping systems. 325 series regulators are for use on residential, commercial, and industrial applications. The 325 Series features a high leverage linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise regulating control from full flow down to pilot flow.

  • Regulator with 12A49 vent limiter
  • Suitable for multi-positional mounting
  • Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures

Standard/Approvals: C/US CSA 6.22 Certified, Meets ANSI Standard Z21.80, CE Marked, Australian Gas Association Certified, UA.TR.012-13 Certified

Application: For 2 psi Piping Systems

Brand : Maxitrol
Item Name : Line Regulator with Vent Limiter
Series/Model : 325-L Series
Type : Lever Acting
Nominal Size : 1-1/4 Inch
Connection Type : NPT
Connection Size : 1-1/4 x 1-1/4 Inch
Length : 8 Inch
Material : Aluminum Housing
Pressure Rating : 2 psi
Temperature Rating : -40 to 205 deg F
BTU Rating : 1250000 BTU/hr
