BrassCraft G2R12X-C

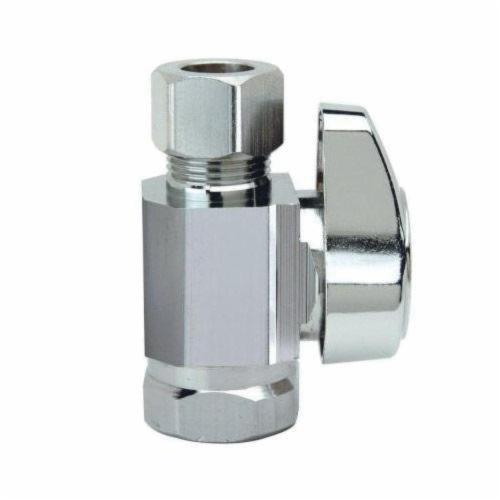

BrassCraft G2R12 Lead-Free Brass Straight Stop, 1/2 Inch FIP x 3/8 Inch O.D Compression, Chrome-Plated

  • Mfg. Name: BrassCraft
  • Brand Name: BrassCraft
  • MPN: G2R12X-C
  • PSCN: 408508
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • One-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
  • Positive 1/4 turn shut-off
  • Full-flow operation with no waterway obstructions
  • Corrosion-resistant handle is plated in an attractive chrome finish
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Easy to remove handle with screw attachment protects accidental stop operation during rough-ins
  • 100% leak tested
  • Not intended for recirculating systems that produce continuous use temperatures above 115 deg F

Standard/Approvals: IAPMO Listed To ASME A112.18.1-05/CSA B125.1-05 File Number 0645, CSA Listed To ASME A112.18.1-05/CSA B125.1-05 File Number 204593, Compliant Product CSA Approved To California Health And Safety Code 116875 And Vermont Bill S.152 (Project # 2174785)

Application: For Use In Potable Water Distribution Systems

Brand : BrassCraft
Item Name : Straight Stop
Series/Model : G2R12
Body Style : Straight
Nominal Size : 1/2 x 3/8 Inch Outer Diameter
Connection Type : FIP x Compression
Turn : 1/4
Material : Lead-Free Brass
Finish : Chrome-Plated
Pressure Rating : 125 psi
Temperature Rating : 40 - 140 deg F
Dimensions : 2.03 Inch Length
