Watts 0559119

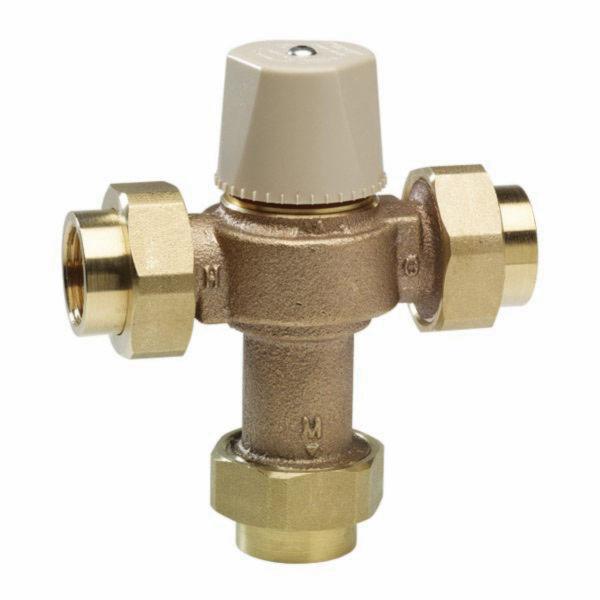

Watts LFMMV Series Lead-Free Cast Copper Silicon Alloy Thermostatic Mixing Valve, 3/4 Inch Threaded, 30 - 150 psi

  • Mfg. Name: Watts
  • Brand Name: Watts
  • MPN: 0559119
  • PSCN: 415932
  • UPC: 098268451825
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Series LFMMV Thermostatic Mixing Valves maintain and limit mixed hot water to a desired, selectable temperature. The LFMMV series can be set to any temperature between 80 deg F and 120 deg F with flow rates as low as 0.5 gpm and as high as 12 gpm. This mixing valve series is listed under ASSE 1017 for valves used in hot water source applications, ASSE 1069 for single-pipe, tempered water applications and ASSE 1070 for valves used in individual or multiple fixture applications and also listed IAPMO cUPC. The LFMMVs feature Lead Free construction to comply with Lead Free installation requirements. The LFMMV-M1 uses a double throttling design to control both the hot and cold water supply to the mixed outlet. The superior flow characteristics of this valve provide accurate temperature control (+/-3 deg F) with low pressure drop across the rated flow range. As an added feature, the LFMMV-M1 series incorporates integral inlet filter washers and check valves in both the hot and cold water inlets to protect against cross flow.

  • Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
  • Thermostat controls both hot and cold water
  • Adjustment cap with locking feature

Standard/Approvals: ASSE 1017, ASSE 1069, ASSE 1070, IAPMO cUPC Certified

Application: For Residential, Commercial And Institutional Applications

Brand : Watts
Item Name : Thermostatic Mixing Valve
Series/Model : LFMMV Series
Connection Size : 3/4 Inch
Connection Type : Threaded
Temperature Rating : Setting: 80 - 120 deg F, Maximum: 200 deg F
Length : 4-7/8 Inch
Height : 5-5/16 Inch
Material : Lead-Free Cast Copper Silicon Alloy Body, Stainless Steel Disc
Pressure Rating : 30 - 150 psi
Includes : Filter Washers and Check Valves
