Zoeller 820-0011

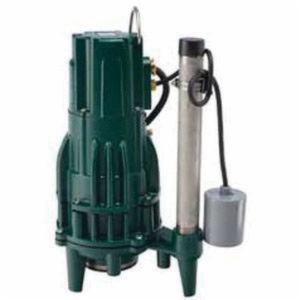

Zoeller The Shark® 820 Cast Iron Grinder Pump, 200 - 230 V, 2 hp, 13.7 - 15.5 A

  • Mfg. Name: Zoeller
  • Brand Name: Zoeller
  • MPN: 820-0011
  • PSCN: 4269
  • UPC: 53514068974
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Automatic model with integral control
  • Durable, heavy-duty, finned cast iron construction
  • Legs provided for free-standing installation
  • Oil-filled, hermetically-sealed motor with Class B insulation, automatic reset thermal overload protected
  • Upper and lower ball bearings running in bath of oil
  • Hardened stainless steel cutter and disc
  • Cutters protected from abrasive solids
  • Stainless steel lifting handle, screws and bolts
  • Easily adapts to rail systems
  • Control panels not required
  • Corrosion-resistant, powder-coated epoxy finish
  • Thermal overload protection
  • Stainless steel cutter plate/cutter
  • Stainless steel hardware
  • 20 ft power cord, extra lengths available (consult factory)

Standard/Approvals: CSA Certified, C/US UL Listed

Application: For Use In Residential Or Commercial Wastewater Applications

Brand : Zoeller
Sub Brand : The Shark®
HP Rating : 2 hp
Series/Model : 820
Item Name : Grinder Pump
Discharge : 1-1/4 Inch NPT Vertical
Voltage Rating : 200 - 230 V
Amperage Rating : 13.7 - 15.5 A
Phase : 1
RPM : 3450 Rpm
Switch Type : Variable Level Float
Cord Length : 20 ft
Bearing Type : Ball
Base Material : Cast Iron
Impeller Material : Engineered Plastic
Shaft Material : Stainless Steel
Shaft Seal : Carbon/Ceramic
Maximum Head : 107 ft
Maximum Temperature : 130 deg F
Diameter : 8 Inch
Height : 15-5/8 Inch
Frequency Rating : 60 Hz
GPM Of Water @ 5 Ft. Of Head : 46 gal
