Zoeller 98-0001

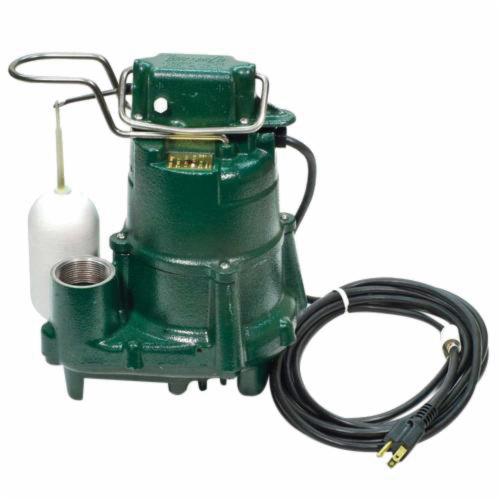

Zoeller Flow-Mate M98 Cast Iron Automatic Effluent Submersible Pump, 1/2 hp, 115 V, 72 gpm

  • Mfg. Name: Zoeller
  • Brand Name: Zoeller
  • MPN: 98-0001
  • PSCN: 13914
  • UPC: 53514029463
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Corrosion-resistant, powder-coated epoxy finish
  • Cast iron switch case, motor, pump housing and base
  • No sheet metal parts to rust or corrode
  • All castings are cast iron class 25-30 25000# tensile strength
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Float-operated 2-pole mechanical switch
  • Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
  • Bearings - upper and lower oil-fed cast iron
  • Carbon and ceramic shaft seal
  • Entire unit pressure-tested after assembly
  • Watertight, neoprene square ring between motor and pump housing
  • Passes 1/2 Inch spherical solids
  • No screens to clog
  • Automatic models include a float-operated, 2-pole mechanical switch, a stainless steel float guard and switch arm, and a solid, buoyant polypropylene float, which prevents water from filling the float and causing a malfunction
  • Includes a stainless steel handle for easy installation and removal
  • All models are hermetically sealed to be watertight, dust-tight, and completely submersible

Standard/Approvals: UL Listed, CSA Certified

Application: For Septic Tanks, Low Pressure Pipe (LPP) And Enhanced Flow STEP Systems

Brand : Zoeller
HP Rating : 1/2 hp
Sub Brand : Flow-Mate
Item Name : Effluent Submersible Pump
Series/Model : M98
Type : Automatic
Maximum Flow : 72 gpm
Voltage Rating : 115 V
Material : Cast Iron
Switch Type : Float Mechanical Switch
Impeller Material : Non-Clogging Vortex
Outlet Connection : 1-1/2 Inch NPT Discharge
Cord Length : 15 ft
Amperage Rating : 9.4 A
Finish : Powder Coated
Temperature Rating : 130 deg F
Maximum Head : 23 ft
RPM : 1725 Rpm
Phase : 1
Frequency Rating : 60 Hz
Includes : Mechanical Switch, Float Guard, Switch Arm, Handle
Dimensions : 10.125 Inch Length x 7-7/8 Inch Width x 12-1/16 Inch Height
