Zoeller 267-0001

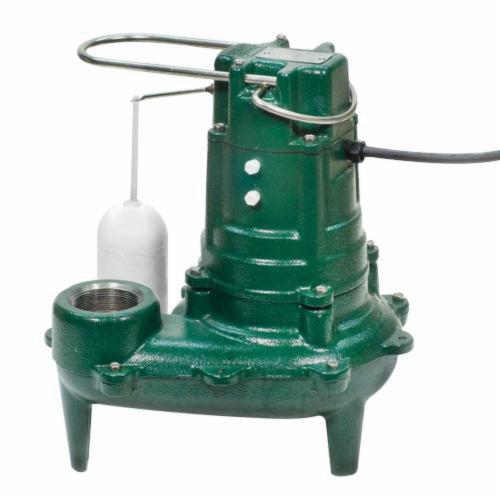

Zoeller Waste-Mate 260 Series Cast Iron Automatic Submersible Sewage Pump, 1/2 hp, 115 V, 89 gpm at 10 ft Height, 50 gpm at 15 ft Height, 10 gpm at 20 ft

  • Mfg. Name: Zoeller
  • Brand Name: Zoeller
  • MPN: 267-0001
  • PSCN: 12092
  • UPC: 53514017613
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2 Inch (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance.

  • Automatic models include a float-operated, 2-pole mechanical switch, a stainless steel float guard and switch arm, and a solid, buoyant polypropylene float, which prevents water from filling the float and causing a malfunction
  • Includes a stainless steel handle for easy installation and removal
  • All models are hermetically sealed to be watertight, dust-tight, and completely submersible

Standard/Approvals: UL Listed, CSA Certified

Application: For Use in Residential or Light Commercial Dewatering And Wastewater Applications And Can Be Used to Transfer Groundwater and Effluent or Raw Sewage

Brand : Zoeller
Sub Brand : Waste-Mate
HP Rating : 1/2 hp
Item Name : Submersible Sewage Pump
Series/Model : M267, 260 Series
Type : Automatic
Maximum Flow : 128 gpm at 5 ft Height, 89 gpm at 10 ft Height, 50 gpm at 15 ft Height, 10 gpm at 20 ft
Voltage Rating : 115 V
Material : Cast Iron
Switch Type : Vertical
Impeller Material : Polypropylene
Outlet Connection : 2 Inch NPT Discharge
Cord Length : 10 ft
Amperage Rating : 10.4 A
Temperature Rating : 130 deg F
Maximum Head : 21 ft
RPM : 1725 Rpm
Phase : 1
Frequency Rating : 60 Hz
Includes : Mechanical Switch, Float Guard, Switch Arm, Handle
Dimensions : 13-1/16 Inch Diameter x 14-9/32 Inch Height
