/Sloan Royal® High Copper And Low Zinc Brass Casting Exposed Urinal Flushometer, 1 gpf, 3/4 Inch IPS

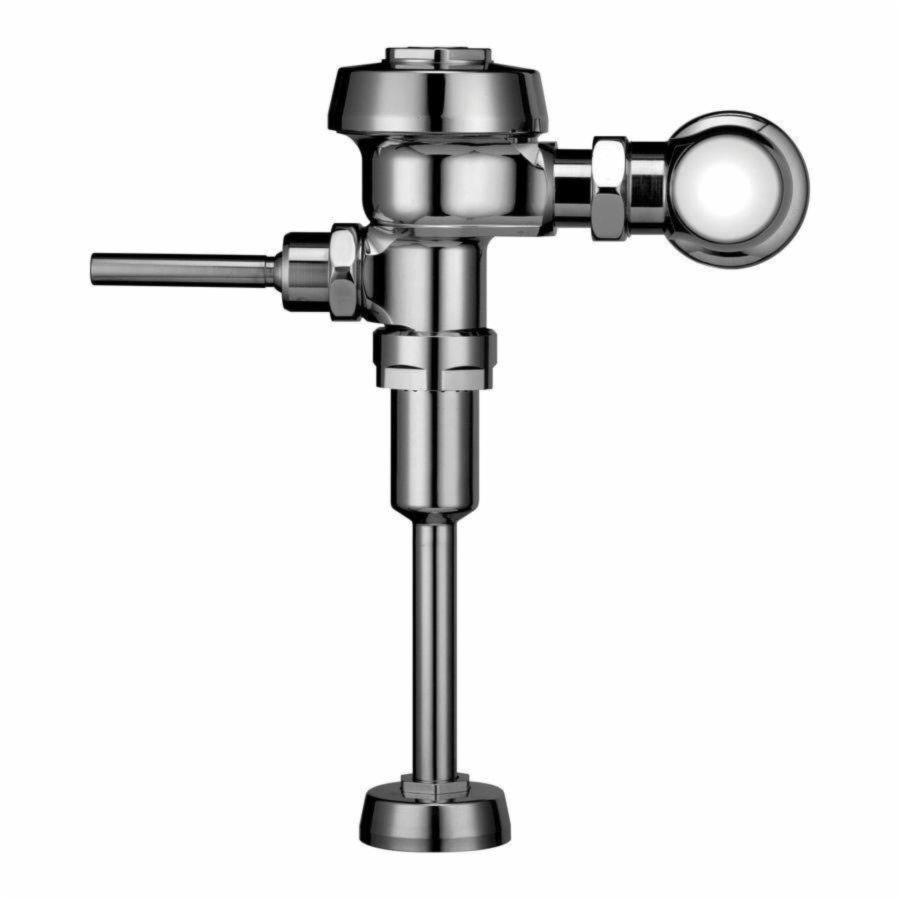

Sloan Royal® 186-1, 3012636 High Copper and Low Zinc Brass Casting Exposed Urinal Flushometer, 1 gpf, 3/4 Inch IPS

Retail Price:

Qty

Add / Remove CPN

Permex™ synthetic rubber diaphragm with dual filtered fixed bypass
ADA compliant metal oscillating non-hold-open handle with triple seal handle packing
3/4 Inch IPS Screwdriver Bak-Chek™ angle stop with free spinning vandal resistant stop cap
Adjustable tailpiece, high back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
Sweat solder adapter with cover tube and cast wall flange with set screw
High copper, low zinc brass castings for dezincification resistance
Non-hold-open handle, fixed metering bypass and no external volume adjustment to ensure water conservation
Flush accuracy controlled by CID technology
Diaphragm, handle packing, stop seat and vacuum breaker molded from permex rubber compound for chloramine resistance
Valve body, cover, tailpiece and control stop shall be in conformance with ASTM Alloy classification for semi-red brass, valve

Standard/Approvals: ASSE 1037, ANSI/ASME 112.19.2 And Military Specification V-29193

Brand	:	Sloan
Sub Brand	:	Royal®
Item Name	:	Urinal Flushometer
Type	:	Exposed
Gallons Per Flush	:	1 gpf
Material	:	High Copper and Low Zinc Brass Casting
Finish	:	Chrome-Plated
Spud Inlet Size	:	3/4 Inch
Spud Location	:	Top
Water Supply Connection	:	3/4 Inch IPS
Rough-In	:	11-1/2 Inch
Dimensions	:	11-1/2 Inch Height
ADA Compliant	:	Yes
