Zoeller BN-264

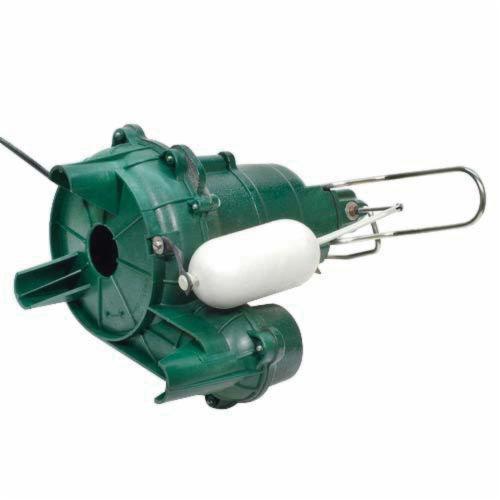

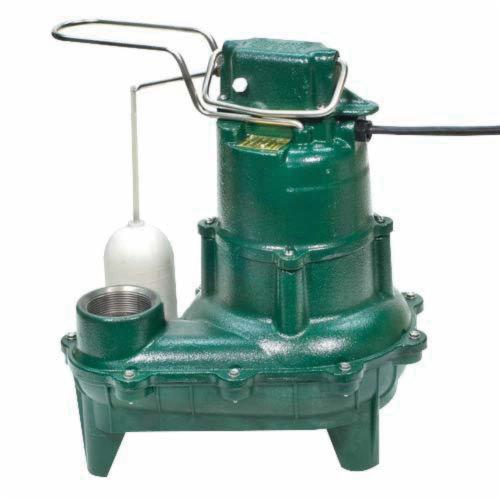

Zoeller Waste-Mate 264 Series Cast Iron Automatic or Non-Automatic Submersible Sewage Pump With Switch, 4/10 hp, 115 V, 90 gpm

  • Mfg. Name: Zoeller
  • Brand Name: Zoeller
  • MPN: BN-264
  • PSCN: 15000
  • UPC: 53514025267
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

This series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2 Inch spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.

  • Float operated, submersible (NEMA 6) 2 pole mechanical switch
  • Durable cast iron construction - switch cap, motor and pump housing
  • Engineered, glass-filled plastic non-clogging vortex impeller with metal insert
  • Stainless steel screws, bolts, handle, guard, arm and seal assembly
  • Corrosion-resistant, powder-coated epoxy finish
  • Hermetically sealed, automatic reset thermal overload protection
  • Upper and lower sleeve bearings running in bath of oil
  • Passes 2 Inch spherical solids
  • Minimum recommended basin size simplex - 18 x 30 Inch, duplex - 30 x 36 Inch
  • Reserve powered design, for unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump

Standard/Approvals: C/US CSA Certified, C22.2 No. 108, UL Listed, UL 778, SSPMA Certified

Application:For Use in Residential or Light Commercial Dewatering and Wastewater Applications and Can be Used to Transfer Effluent or Raw Sewage

Brand : Zoeller
HP Rating : 4/10 hp
Item Name : Submersible Sewage Pump with Switch
Series/Model : Waste-Mate 264 Series
Type : Automatic or Non-Automatic, Permanent Split Capacitor
Maximum Flow : 90 gpm
Voltage Rating : 115 V
Material : Cast Iron Housing and Cap, Stainless Steel Lifting Handle and Bolts, Carbon/Ceramic Seals, Neoprene Gasket
Switch Type : Variable Level Float
Impeller Material : Engineered Plastic
Outlet Diameter : 2 Inch
Outlet Connection : NPT
Cord Length : 15 ft
Amperage Rating : 9.4 A
Finish : Powder Coated Epoxy
Temperature Rating : 130 deg F
Maximum Head : 18 ft
Head Range : 0 - 18 ft
RPM : 1725 Rpm
Phase : 1
Frequency Rating : 60 Hz
Includes : Float-Operated, 2-Pole Mechanical Piggyback Variable Level Float Switch, Stainless Steel Float Guard and Switch Arm and Solid, Buoyant Polypropylene Float, Stainless Steel Handle
Dimensions : 14-3/4 Inch Height
Cooling : Oil Filled
