Zoeller BN-152

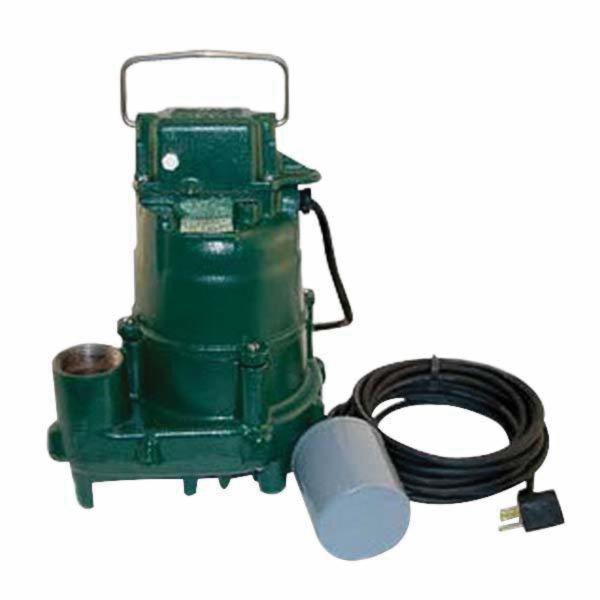

Zoeller High Head Dose-Mate 150 Series Cast Iron Automatic or Non-Automatic Effluent Pump With 1-1/2 Inch Discharge, 4/10 hp, 115 V, 77 gpm

  • Mfg. Name: Zoeller
  • Brand Name: Zoeller
  • MPN: BN-152
  • PSCN: 14335
  • UPC: 53514118679
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

This submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. It includes a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance.

  • Durable cast iron construction, corrosion-resistant powder-coated epoxy finish
  • Non-clogging engineered thermoplastic vortex impeller design
  • Passes 3/4 Inch spherical solids
  • Motor - oil-filled, hermetically sealed, automatic reset thermal overload protected
  • Upper sleeve bearing and lower ball bearing running in bath of oil
  • 1-1/2 Inch NPT vertical discharge
  • Hermetically sealed to be watertight, dust-tight and completely submersible

Standard/Approvals: C/US CSA Certified, CSA 22.2 No. 108, UL Listed, UL 778, SSPMA Certified

Application: For Sewage, Sewage Waste Transfer, Effluent Application

Brand : Zoeller
HP Rating : 4/10 hp
Item Name : Effluent Pump
Series/Model : High Head Dose-Mate 150 Series
Type : Automatic or Non-Automatic, Permanent Split Capacitor
Maximum Flow : 77 gpm
Voltage Rating : 115 V
Material : Cast Iron Housing and Cap, Plastic or Cast Iron Base, Stainless Steel Hardware, AISI 1215 Steel Motor Shaft, Neoprene Gasket, Carbon and Ceramic Mechanical Seals
Switch Type : Variable Level Float
Impeller Material : Engineered Thermoplastic
Outlet Diameter : 1-1/2 Inch
Outlet Connection : NPT
Cord Length : 20 ft
Amperage Rating : 8.5 A
Finish : Powder Coated Epoxy
Temperature Rating : 130 deg F
Maximum Head : 44 ft
Head Range : 0 - 44 ft
RPM : 3450 Rpm
Phase : 1
Frequency Rating : 60 Hz
Includes : 20 ft Variable Level Float Switch, a Stainless Steel Handle For Easy Installation and Removal, 1-1/2 x 2 Inch PVC Adapter Fitting
Dimensions : 12-1/8 Inch Height
Impeller Type : Non-Clogging Vortex
Cooling : Oil Filled
