Watts 1019B-0806

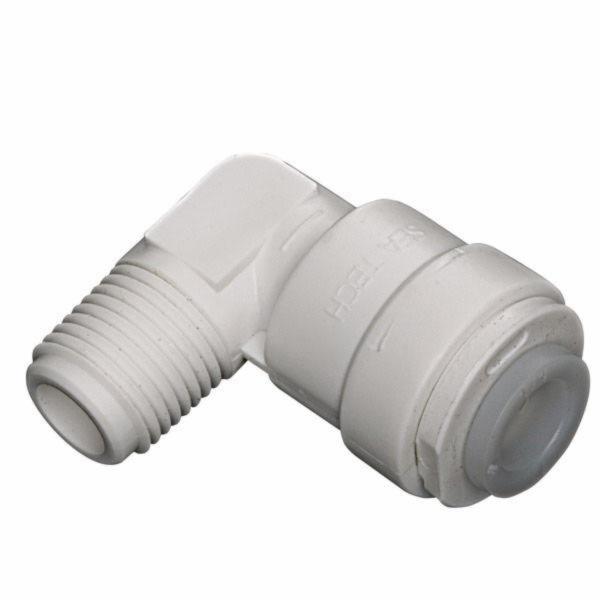

Watts Series 10 Polypropylene Quick-Connect Type-19 Elbow, 1/2 Inch Tube x 3/8 Inch MNPTF, 150 psi at 70 deg F, 60 psi at 140 deg F

  • Mfg. Name: Watts
  • Brand Name: Watts
  • MPN: 1019B-0806
  • PSCN: 22942
  • UPC: 098268426755
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Watts quick-connect elbows are designed and manufactured for many years of trouble free service. Produced of off white polypropylene, a high performance thermoplastic material, the Watts Quick-Connect design allows for quick and easy connections without the use of installation tools.

  • Fitting shall be able to fully rotate under pressure and allow easy disconnect and reuse without the use of disconnection tools
  • Fitting must not disassemble to disconnect
  • Quick-Connect fitting with Integral Collet and O-Ring Guide

Standard/Approvals: NSF 61 Certified

Application: For use in potable water systems

Brand : Watts
Series/Model : Series 10
Item Name : Elbow
Type : Quick-Connect, Type-19
Nominal Pipe Size : 1/2 x 3/8 Inch
Connection Type : Tube x MNPTF
Material Specification : Polypropylene
Finish : Off-White
Pressure Rating : 150 psi at 70 deg F, 60 psi at 140 deg F
Dimensions : 1-1/2 Inch Length x 1-11/16 Inch Height
