Sioux Chief 653-B

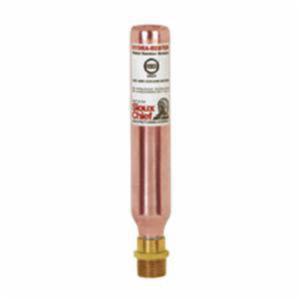

Sioux Chief HydraRester™ 653-B Type L Copper Tube Water Hammer Arrester, 3/4 Inch MIP Thread, 8-3/4 Inch L

  • Mfg. Name: Sioux Chief
  • Brand Name: Sioux Chief
  • MPN: 653-B
  • PSCN: 25214
  • UPC: 739236107534
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Allows for installation in 2 × 4 wall cavity
  • Arresters shall be effective when installed at any angle
  • Poly piston with two EPDM o-rings
  • Dow-Corning, 111 FDA approved silicone compound piston lubrication
  • Lifetime cycle tested at U.S. Testing Laboratories to withstand 10,000 shock cycles and factory tested to withstand 500,000 cycles without failure (654-C tested)
  • No lead
  • Water hammer arresters shall have sufficient volume of air to dissipate the calculated kinetic energy generated in the piping system
  • Arresters shall be approved for installation with no access panel required
  • HydraRester™ male sweat fittings are compatible with press-fitting systems, such as Viega ProPress™ and all push-fitting systems

Standard/Approvals: Certified By ASSE To The ANSI/ASSE 1010-2004 Standard

Brand : Sioux Chief
Sub Brand : HydraRester™
Item Name : Water Hammer Arrester
Nominal Size : 3/4 Inch
Connection Type : MIP Thread
Temperature Rating : Working: 250 deg F Maximum
Pressure Rating : 350 psig Maximum Working
Material : Type L Copper Tube Body
Ring Material : EPDM
Length : 8-3/4 Inch
Chamber Width : 1-3/8 Inch
Burst Tested Pressure : 2900 psig
Unit Size : B
Number Of Fixture Units : 12-32
Air Chamber Volume : 7 cu-Inch
