Watts 0122693

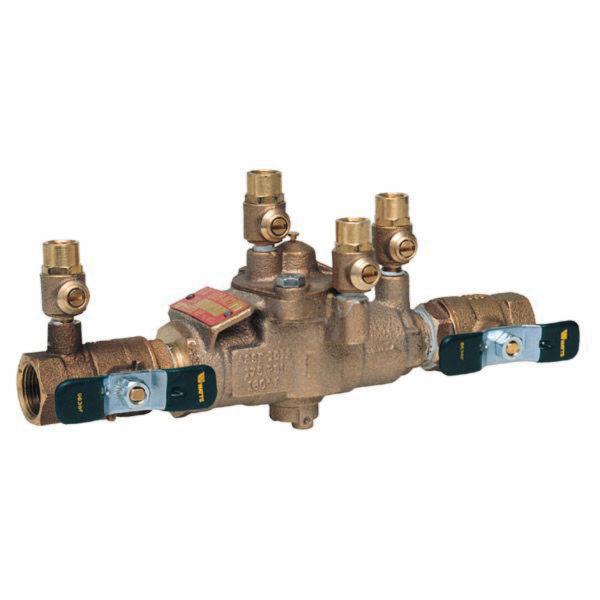

Watts LF009M2 Series Lead Free Cast Copper Reduced Pressure Zone Assembly, 1 Inch NPT, 5-1/2 Inch H

  • Mfg. Name: Watts
  • Brand Name: Watts
  • MPN: 0122693
  • PSCN: 414220
  • UPC: 098268643213
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Series LF009 Reduced Pressure Zone Assemblies are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard crossconnections in piping systems or for containment at the service line entrance.The LF009 features Lead Free construction to comply with Lead Free installation requirements. This series features two in-line, independent check valves, captured springs and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access.

  • Single access cover and modular check construction for ease of maintenance
  • Top entry - all internals immediately accessible
  • Captured springs for safe maintenance
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for economical repair
  • Lead free cast copper silicon alloy body construction for durability
  • Ball valve test cocks - screwdriver slotted
  • Large body passages provides low pressure drop
  • Compact, space saving design
  • No special tools required for servicing

Standard/Approvals: USC, ASSE No. 1013, AWWA C511, CSA B64.4, IAPMO File No. 1563, UPC, UL Listed

Brand : Watts
Item Name : Reduced Pressure Zone Assembly
Series/Model : LF009M2 Series
Connection Type : NPT
Connection Size : 1 Inch
Maximum Pressure : 175 psi
Temperature Range : 33 to 180 deg F
Material : Lead Free Cast Copper
Finish : Silicon Alloy
Length : 16-3/4 Inch
Includes : Quarter-Turn Ball Valves, Strainer
Height : 5-1/2 Inch
