Watts 0061888

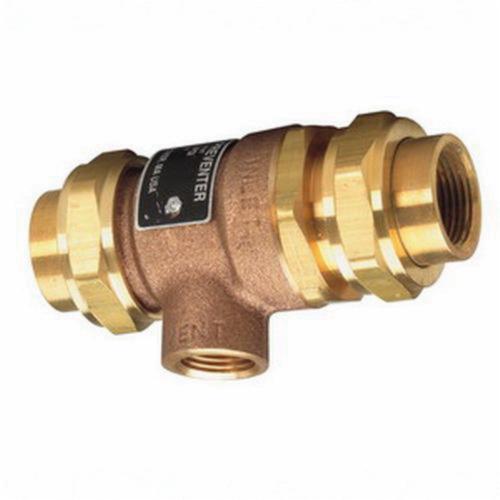

Watts 9D-M2 Series Forged Brass Dual Check Valve, 3/4 Inch Female Union, 2-9/16 Inch H

  • Mfg. Name: Watts
  • Brand Name: Watts
  • MPN: 0061888
  • PSCN: 392500
  • UPC: 098268004281
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Series 9D is suitable for use on hot or cold water and can be used under continuous pressure. It features a primary check valve utilizing a rubber disc seating against a mating rubber part to ensure tight closing. A secondary check valve utilizes a rubber disc-to-metal seating. In the event of fouling of the down-stream check valve, leakage would be vented to atmosphere through the vent port thereby safeguarding the potable water system. Construction is brass body with stainless steel working parts, integral strainer and durable rubber discs. Female union inlet and outlet connections.

  • True line-sized construction allows the check modules to open further allowing dirt and debris to pass more freely reducing check fouling
  • Stainless steel internal parts
  • Maximum flow at low pressure drop
  • Furnished with union connections to facilitate removal and replacement for maintenance
  • Compact for economy combined with performance
  • Design simplicity for easy maintenance
  • Can be installed vertically or horizontally

Standard/Approvals: ASSE 1012, CSA B64 Certified, N.Y.C. BSA 104-75-SM

Application: For Laboratory Equipment, Processing Tanks, Sterilizers, Dairy Equipment And Similar Applications

Brand : Watts
Item Name : Dual Check Valve
Series/Model : 9D-M2 Series
Connection Type : Female Union
Connection Size : 3/4 Inch
Maximum Pressure : 25 psi Min to 175 psi Max
Temperature Range : 33 to 250 deg F
Material : Forged Brass Body, Stainless Steel Internal Parts, Rubber Check Valve
Length : 4-1/2 Inch
Includes : Intermediate Atmospheric Vent
Height : 2-9/16 Inch
