Maxitrol 325-5-1-12A39

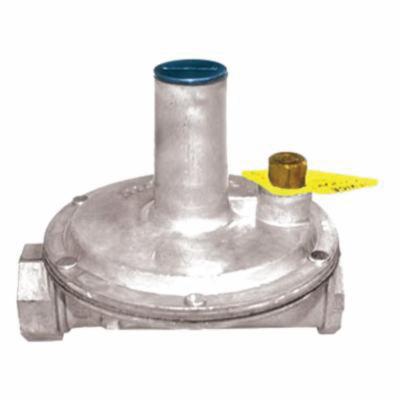

Maxitrol Series 325 Lever-Acting Line Gas Pressure Regulator With Vent Limiter, 3/8 Inch NPT, 1 Inch

  • Mfg. Name: Maxitrol
  • Brand Name: Maxitrol
  • MPN: 325-5-1-12A39
  • PSCN: 4827
  • UPC: 68541200248
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Maxitrol's 325 Series pounds to Inches regulators are for use on residential, commercial, and industrial applications. The 325 Series features a high leverage valve linkage Assembly to deliver positive dead-end lock-up. The regulators are capable of precise control from full flow down to pilot flow. Maxitrol has upgraded the 325-5 series for 2 psi systems. The new models offer higher capacities while using the same regulator body size as the original 325-5A series. This allows the regulators to be used on a wider range of applications without needing extra space for installation. The new 325-5 appliance regulators have a capacity of 325,000 Btu/h and replace the 325-5A.

  • Includes 12A39 vent limiter

Standard/Approvals: ANSI Z21.18/CSA 6.3, CSA Certified

Application: For Natural, Manufactured, Mixed Gases, Liquefied Petroleum Gases And Lp Gas-Air Mixtures

Brand : Maxitrol
Item Name : Gas Pressure Regulator with Vent Limiter
Series/Model : Series 325
Type : Lever-Acting Line
Nominal Size : 1 Inch
Connection Type : NPT
Connection Size : 3/8 Inch
Pressure Rating : Max. Inlet Pressure: 1 psi, Inlet Emergency Exposure Limits: 65 psi
Temperature Rating : -40 to 205 deg F Ambient
BTU Rating : 325000 BTU/hr
